Removal And Installation: Removal

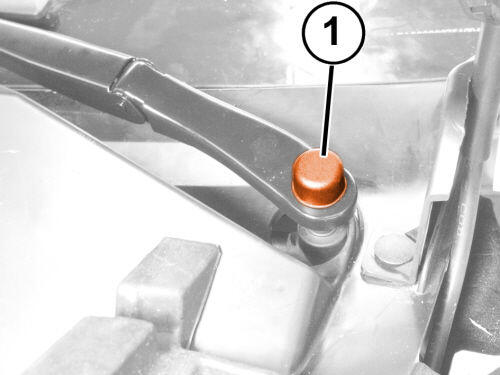

GC0197538Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood.
  2. Release the nut cover at the base of the windshield wiper arm.

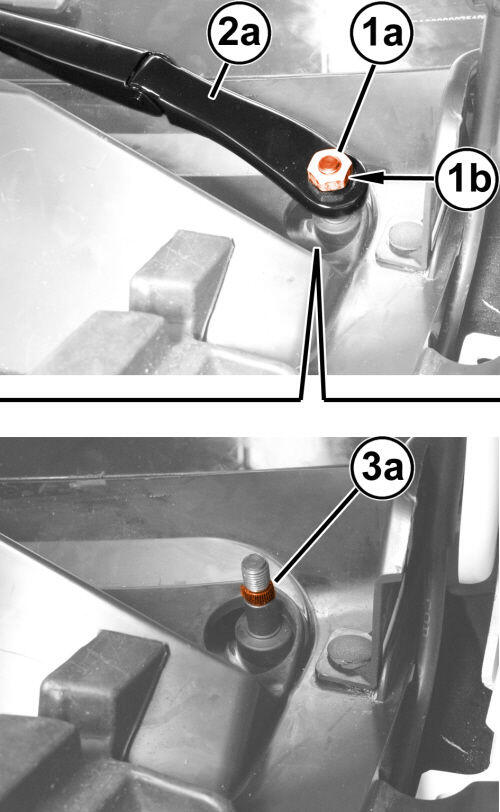

    GC0197947Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nut (1a) and the washer (1b).
  4. Remove the windshield wiper arm (2a).
  5. If necessary, remove the wiper arm using a suitable extractor to release the ribbed truncated cone coupling (3a).
