Removal And Installation: Installation

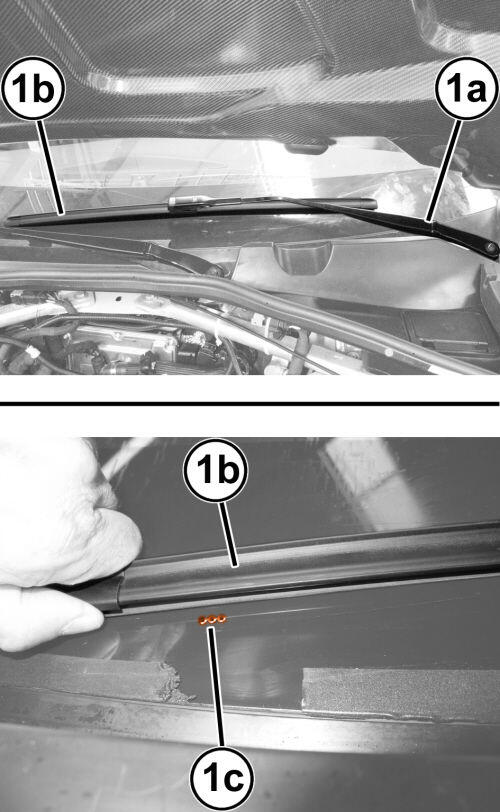

GC0197934Courtesy of CHRYSLER GROUP, LLC
  1. Check that the wiper arm and the blade are not damaged.
  2. Place the windshield wiper arm (1a) in position aligning the blade (1b) with the references (1c) etched on the windshield.

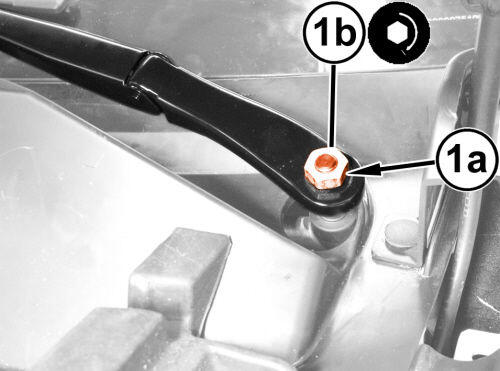

    GC0197575Courtesy of CHRYSLER GROUP, LLC
  3. Install the washer (1a) and nut (1b). Tighten the nut to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the nut cover.
  5. Close the hood.
  6. Check that the windshield wiper is working properly.
