Removal And Installation: Removal
NOTE:
Before performing the battery disconnect, open the hood, open the decklid and support it so it will not close.
- Disconnect and isolate the negative battery cable. Refer to BATTERY, STANDARD PROCEDURE .
- Remove the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .

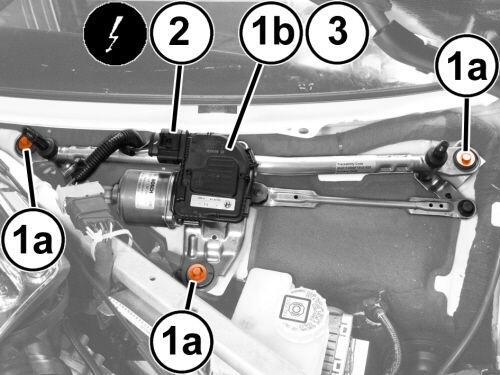

- Disconnect the wire harness connector (2) from the wiper motor.
- Remove the bolts (1a) that secure the wiper linkage assembly (1b) and remove.
