Removal And Installation: Installation

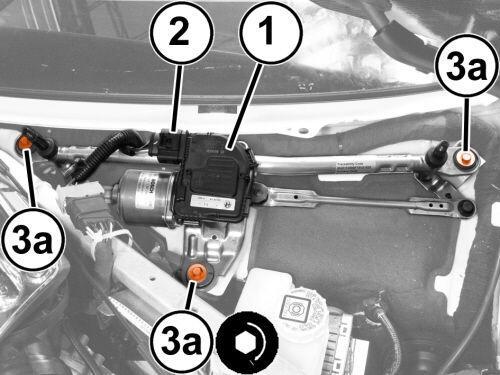

GC0198410Courtesy of CHRYSLER GROUP, LLC
  1. Install the wiper linkage assembly into place.
  2. Install the bolts (3a) and tighten the front wiper linkage bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

    .

  3. Connect the wire harness connector (2).
  4. Install the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. Refer to BATTERY, STANDARD PROCEDURE .
