Removal And Installation: Removal

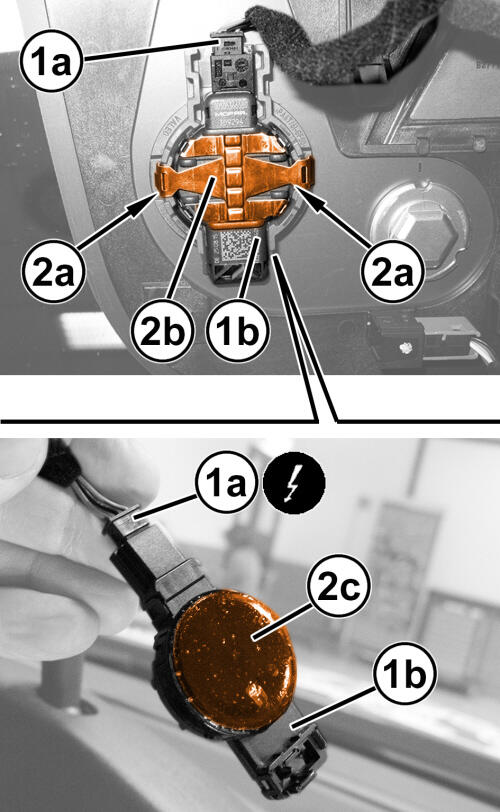

GC0193625Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the inside rearview mirror trim. Refer to MIRROR, REARVIEW, REMOVAL AND INSTALLATION .
  3. Disconnect the wire harness connector (1a) for the Light Rain Sensor Module (LRSM) (1b).
  4. Carefully release the retainers (2a) of the retainer clip (2b), then remove the LRSM.
    NOTE:

    Do not touch the sensitive surface (2c) of the LRSM.
