Removal And Installation: Removal

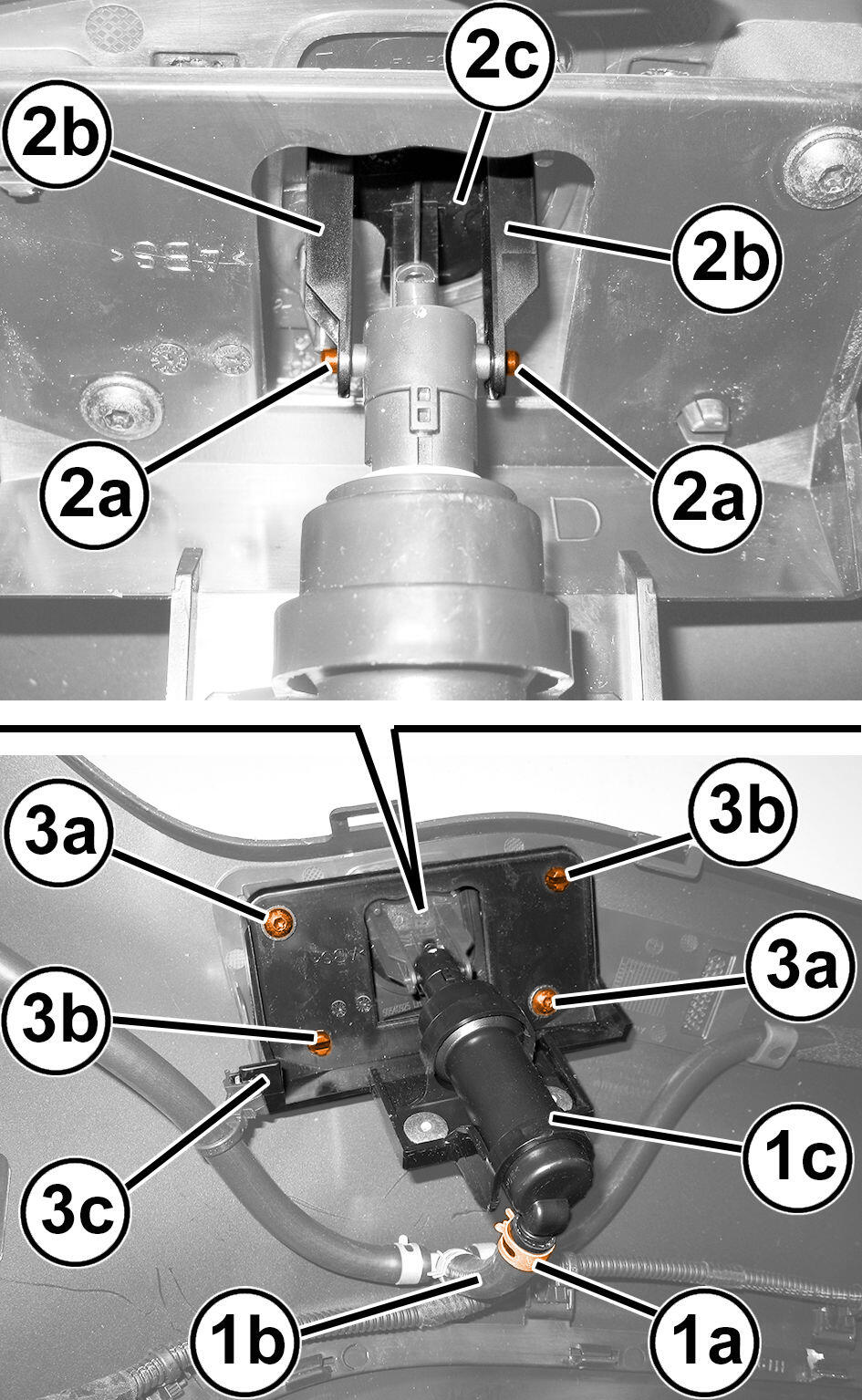

GC0194965Courtesy of CHRYSLER GROUP, LLC
NOTE:

One side shown in illustration, both sides serviced similarly.

  1. Disconnect and isolate the negative battery cable.
  2. Remove both front wheels. Refer to REMOVAL AND INSTALLATION .
  3. Remove the front half of the front wheel splash shields from the wheelhouses. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  4. Remove the front bumper fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  5. Release the retaining clamp (1a) and remove the hose (1b) from the headlight washer nozzle (1c).
  6. Pry outward on the tabs (2b) and remove the headlight washer cover (2c) from the pin (2a).
  7. Unclip the hose retainer (3c).
  8. Remove the two screws (3a).
  9. Using pliers, squeeze the retainers (3b) and remove the headlight washer nozzle (1c).
