Removal And Installation: Installation

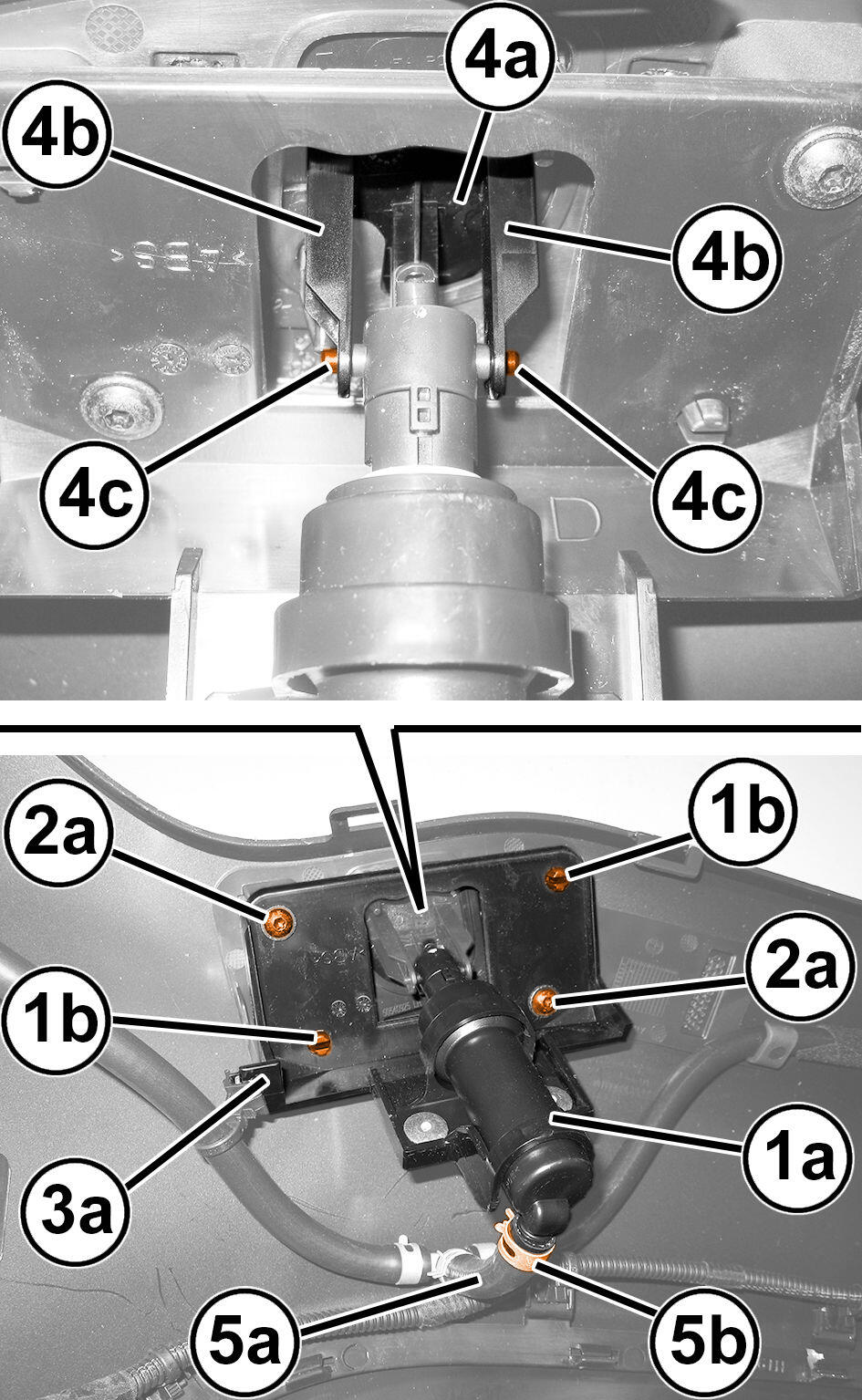

GC0193704Courtesy of CHRYSLER GROUP, LLC
  1. Check that the headlight washer nozzle is not damaged.
  2. Engage the headlight washer nozzle (1a) onto the retainers (1b).
  3. Install the two screws (2a) and securely tighten.
  4. Install the hose clip (3a).
  5. Install the headlight washer cover (4a).
  6. Install the hose (5a) and secure the retaining clamp (5b).
  7. Install the front bumper fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  8. Install the wheel splash shields fully. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION or SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
  9. Install the front wheels. Refer to REMOVAL AND INSTALLATION .
  10. Connect the negative battery cable.
