Removal And Installation: Removal
- Disconnect and isolate the negative battery cable.
- Working inside the engine compartment.

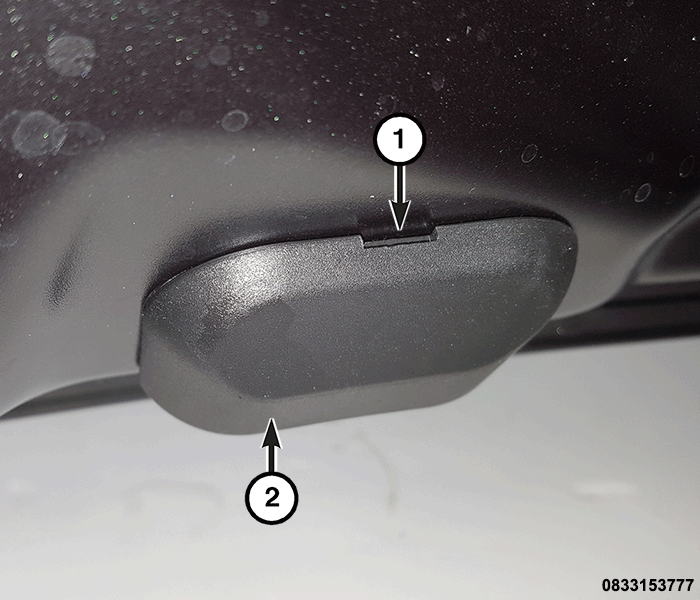

- Using a trim stick or equivalent insert it into the slot (1) to release retainer and remove the washer nozzle cover (2).

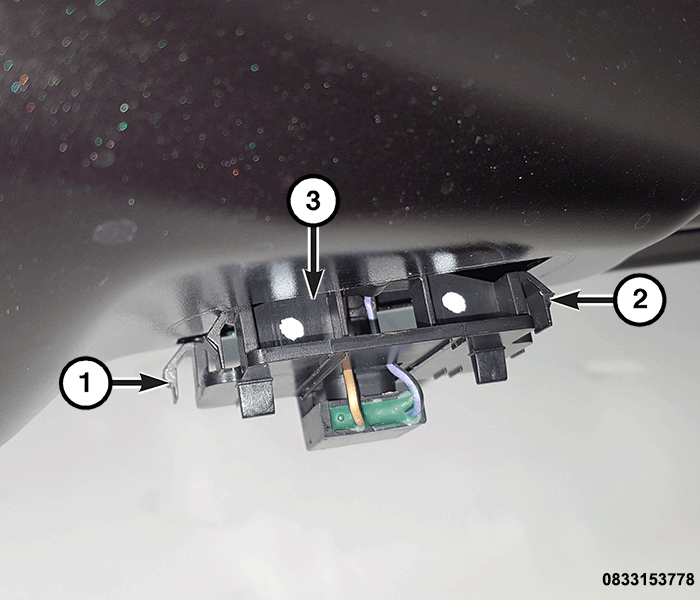

- Using a flat blade screwdriver release the tabs (1) and (2) to release the washer nozzle from under side of the hood.

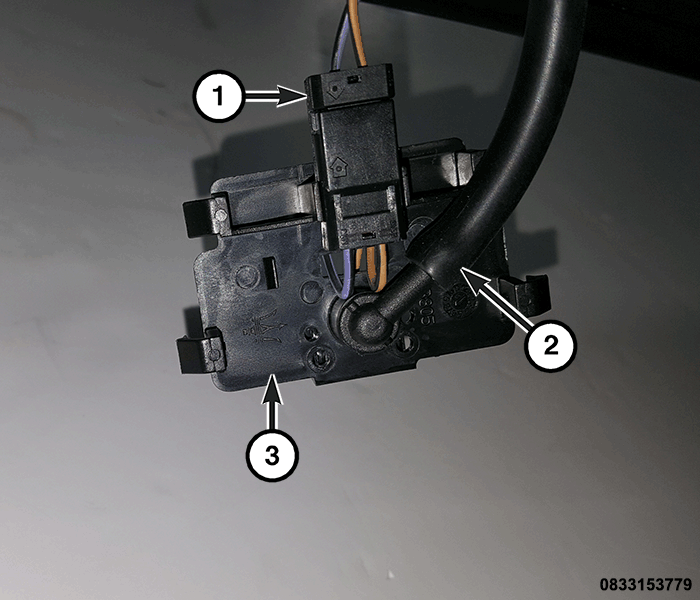

- Disconnect the wire harness connector (1).
- Disconnect the washer solvent hose (2) and remove the washer nozzle from vehicle.
