Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Open the hood.
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the windshield washer reservoir. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL AND INSTALLATION .

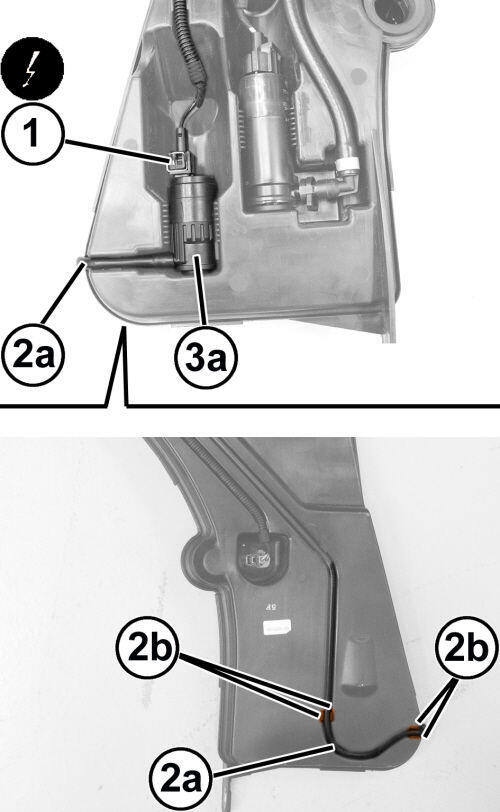

    GC0198203Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wire harness connector for the windshield washer pump.
  6. Release the hose (2a) from the retainers (2b).
  7. Rotate the windshield washer pump (3a) counter-clockwise, then free and disconnect the windshield washer fluid outlet hose (2a).

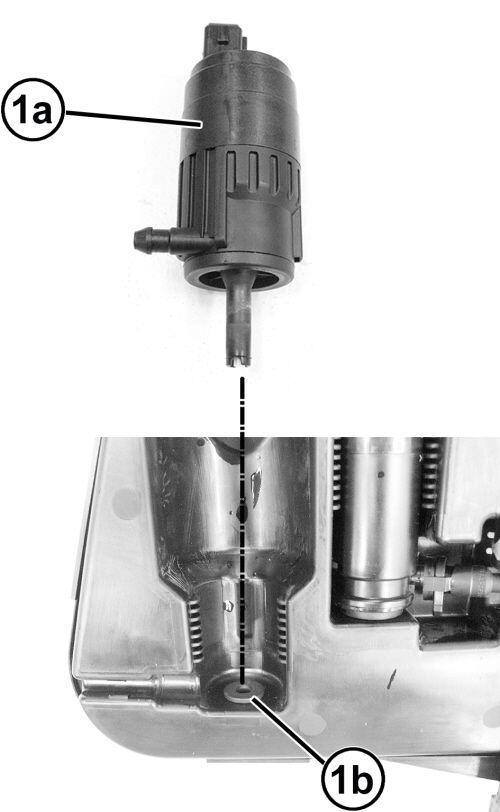

    GC0198395Courtesy of CHRYSLER GROUP, LLC
  8. Remove the windshield washer pump (1a) from the reservoir seat (1b).
