Removal And Installation: Installation
NOTE:
Check that the windshield washer pump is not damaged. Check that the sealing gasket in the reservoir is clean and in good condition.

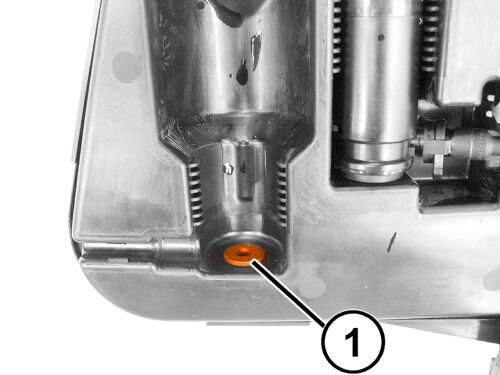

- Insert the windshield washer pump in the reservoir seat.
- Connect the fluid outlet hose to the windshield washer pump.
- Rotate the windshield washer pump clockwise, then insert the fluid outlet hose in its place.
- Connect the windshield washer pump wire harness connector.
- Install the windshield washer reservoir. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative battery cable.
