Filler Neck: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
    NOTE:

    Work on the left side of the vehicle.

  3. Remove the left front tire and wheel. Refer to REMOVAL AND INSTALLATION .
  4. Remove the front half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

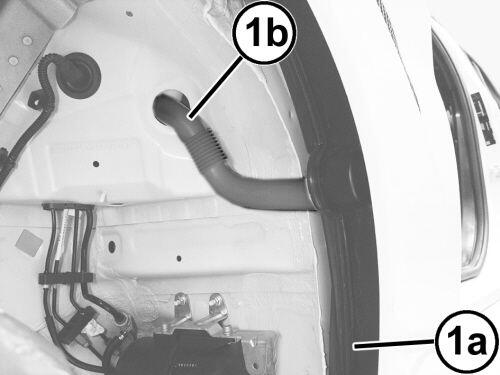

    GC0197968Courtesy of CHRYSLER GROUP, LLC
  5. Release the windshield washer fluid inlet tube (1b) from the reservoir (1a) and recover any windshield washer fluid that comes out.
  6. Remove the support and lower the vehicle.

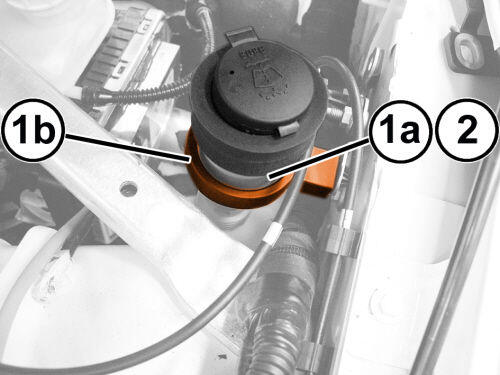

    GC0198338Courtesy of CHRYSLER GROUP, LLC
  7. Release the windshield washer fluid filler tube (1a) from the upper support (1b).
  8. Release the tube (1a) from the passage hole in the body, and remove it.
