Filler Neck: Installation
NOTE:
Check that the windshield washer fluid filler tube is not damaged.
- Position the windshield washer fluid filler tube and engage it in the passage hold in the body.
- Secure the windshield washer fluid filler tube to the upper support.
- Raise and support the vehicle.
- Make sure the sealing gasket on the reservoir is clean and in good condition.

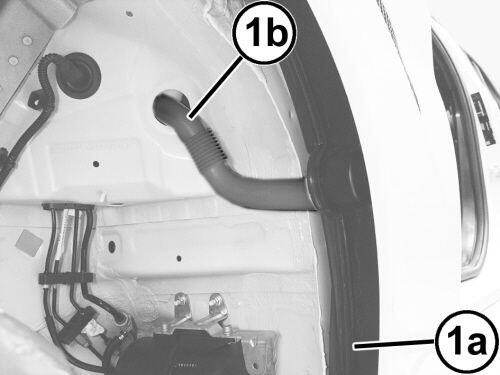

- Install the windshield washer fluid inlet tube (1b) to the reservoir (1a),
- Install the front half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
- Install the left front tire and wheel. Refer to REMOVAL AND INSTALLATION .
- Install the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
