Washer Reservoir: Removal

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Open the hood.
Disconnect and isolate the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

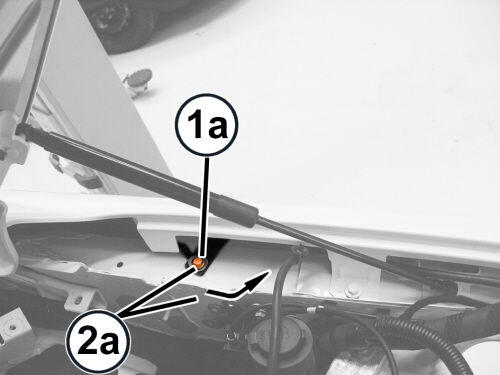

Remove the upper bolt (1a) fixing the windshield washer fluid reservoir.
Rotate the reservoir support (2a) by about 90° in the direction of the arrow.
NOTE:
Work on the left side of the vehicle.
Remove the left front tire and wheel. Refer to REMOVAL AND INSTALLATION .
Remove the front half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
Remove the rear half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

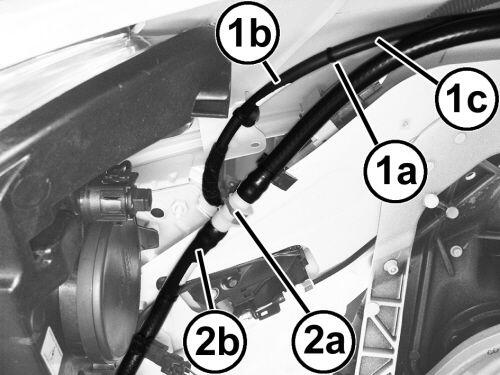

Disconnect the upper windshield washer jet (1b) hose connection (1a) from the windshield washer reservoir outlet hose (1c).
Disconnect the quick coupling (2a) from the headlight washer (2b).

Courtesy of CHRYSLER GROUP, LLC

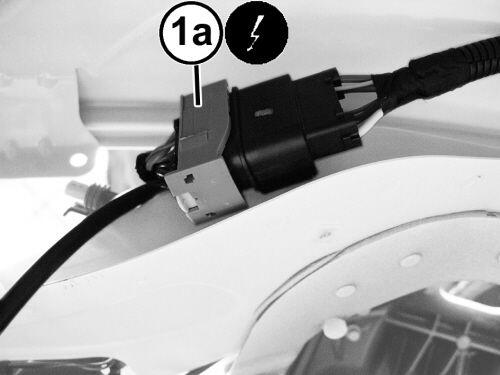

Release the windshield washer fluid reservoir wire harness connector (1a) from the support and disconnect it.

Courtesy of CHRYSLER GROUP, LLC

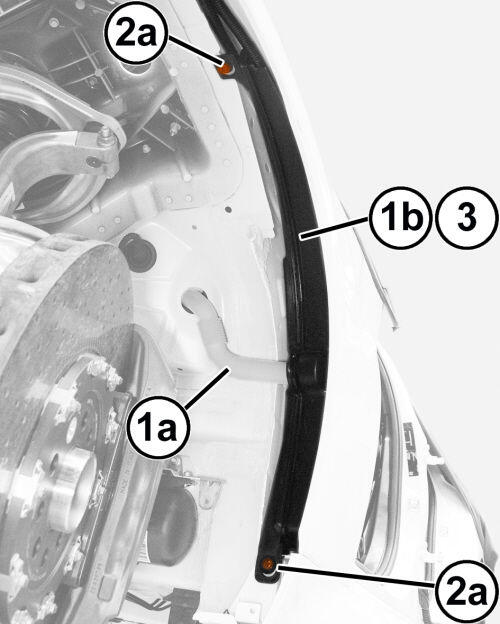

Release the windshield washer fluid inlet hose (1a) from the reservoir (1b) and recover any windshield washer fluid that comes out.
Remove the windshield washer fluid reservoir screws (2a).
Remove the windshield washer fluid reservoir (1b) complete with the hoses and wiring.
If necessary:
Remove the windshield washer pump. Refer to PUMP, WINDSHIELD WASHER, REMOVAL AND INSTALLATION .
Remove the headlamp washer pump. Refer to MOTOR, HEADLAMP WASHER PUMP, REMOVAL AND INSTALLATION .
Remove the windshield washer fluid level sensor.

Courtesy of CHRYSLER GROUP, LLC

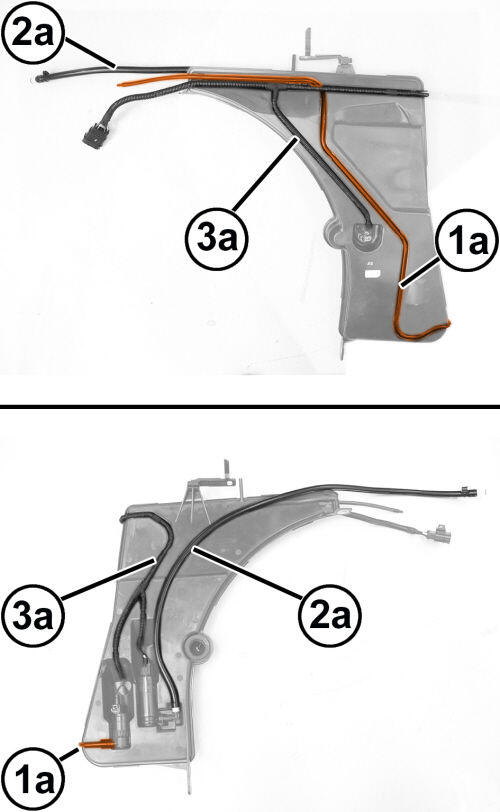

Release and remove the outlet hose (1a) from the windshield washer pump.
Release and remove the outlet hose (2a) from the headlight washer pump.
Release and remove the reservoir wiring (3a).
