Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the windshield washer reservoir. Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL AND INSTALLATION .

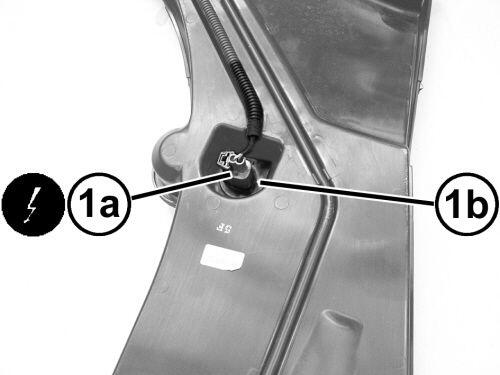

    GC0198349Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the windshield washer fluid level switch (1b) wire harness connector (1a).

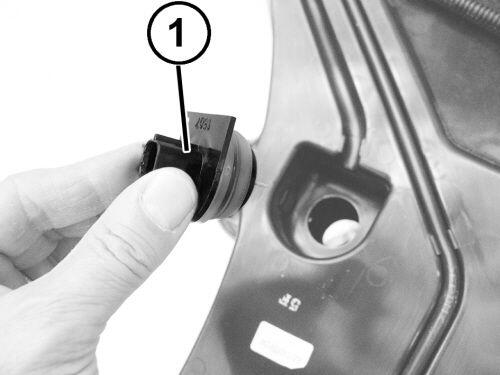

    GC0197596Courtesy of CHRYSLER GROUP, LLC
  5. Remove the washer fluid level switch (1).
