Removal And Installation: Installation

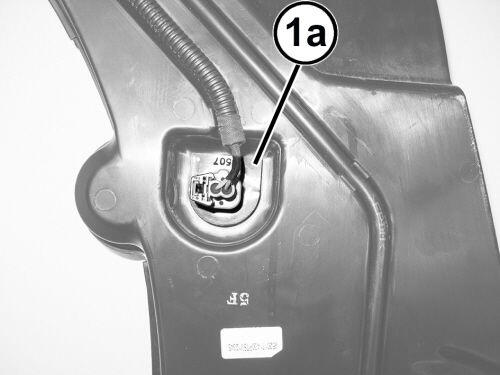

GC0198518Courtesy of CHRYSLER GROUP, LLC
  1. Check that the windshield washer fluid level switch is not damaged.
  2. Insert the windshield washer fluid level switch (1a) in place, aligning its profile with that of the reservoir seat.
  3. Connect the wire harness connector for the windshield washer fluid level switch.
  4. Install the windshield washer reservoir.

    Refer to RESERVOIR, WINDSHIELD WASHER, REMOVAL AND INSTALLATION .

  5. Remove the support and lower the vehicle.
  6. Connect the negative battery cable.
