Door Handle - Rear

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the rear door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, UPPER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

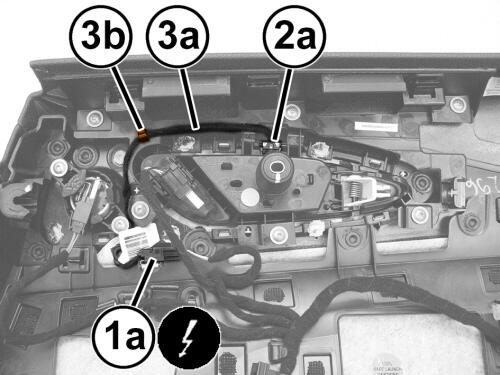

3. Disconnect the wiring harness connector (1a).
4. Disconnect the Light Emitting Diode (LED) lamp (2a).
5. Remove the LED lamp assembly (2a) complete with the wiring (3a) by releasing it from the retainer (3b).

INSTALLATION

1. Inspect the LED lamp complete with wiring integrity.

   Courtesy of CHRYSLER GROUP, LLC

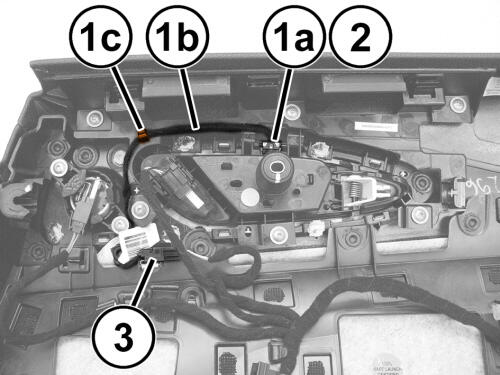

2. Position the LED lamp (1a) complete with wiring (1b) to the door panel and connect the wiring to the wiring retainer (1c).
3. Install the LED lamp to the panel.
4. Connect the wiring harness connector (3).
5. Install the rear door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, UPPER, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable.
