Removal And Installation: FOOTWELL

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the right of left side (as needed) silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

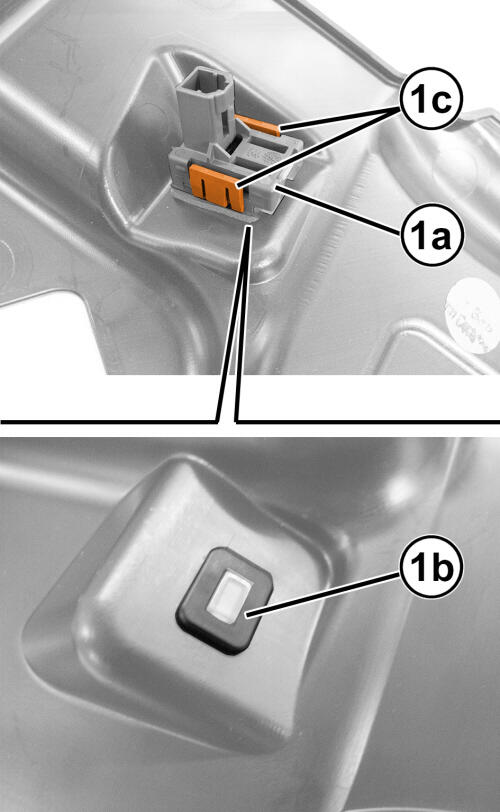

3. Working on the removed silencer panel, depress the retainers (1a) and release the footwell lamp (1b and 1c).
4. Remove the footwell lamp.

INSTALLATION

1. Position the footwell lamp to the panel for installation.

   Courtesy of CHRYSLER GROUP, LLC

2. Snap the footwell lamp (1a and 1b) into the silencer panel until the retainers (1c) have completely engaged.
3. Install the right or left side silencer panel (as needed). Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
