Removal And Installation: Front

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

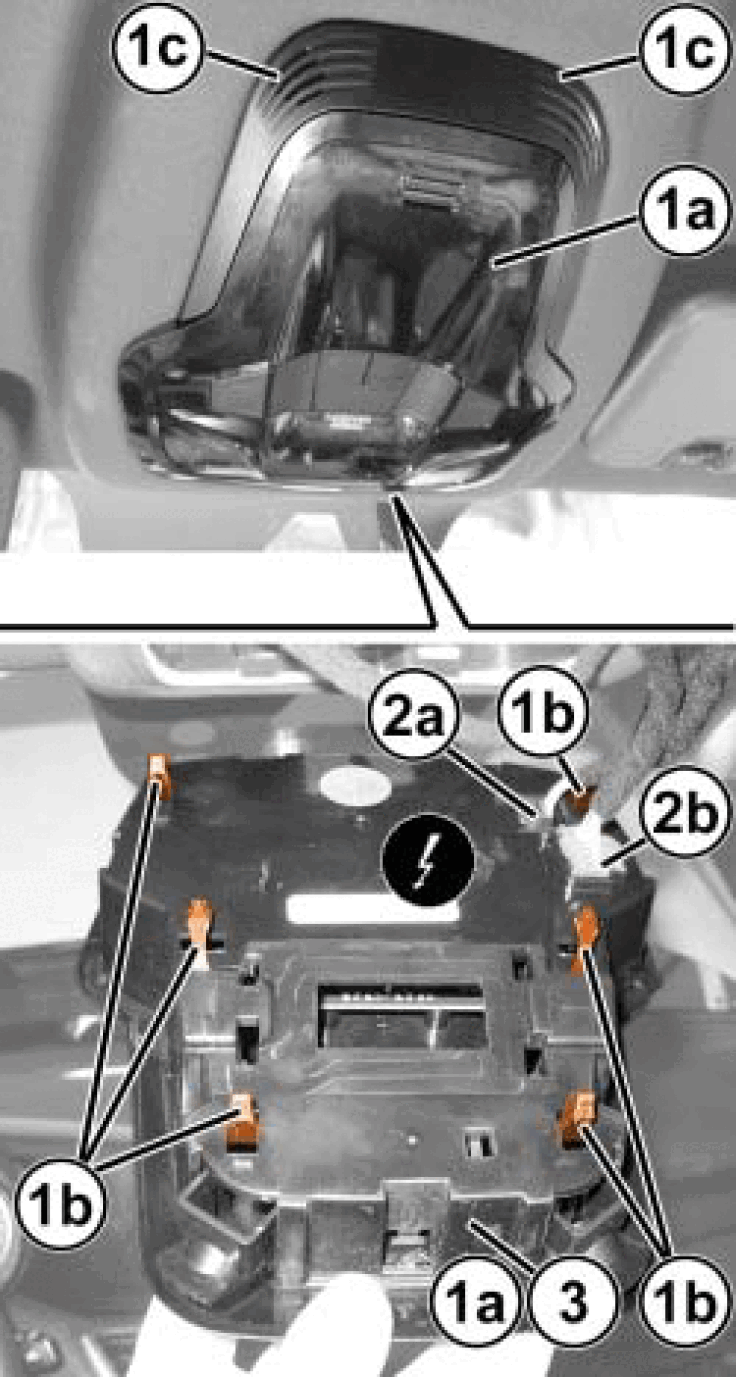

   To avoid damage to the courtesy lamp, do not pry on outer edges (1c)

2. Release the Lower front courtesy lamp retainers (1b) and lower the courtesy lamp (1a).
3. Disconnect the wiring harness connectors (2a and 2b).
4. Remove the front courtesy lamp.
   NOTE:

   The dome light bulbs are LEDs and cannot be changed.

INSTALLATION

1. Inspect the front courtesy lamp and the wiring harness connector integrity.

   Courtesy of CHRYSLER GROUP, LLC

2. Connect the wiring harness connectors (1a and 1b) to the courtesy lamp.
3. Install the front courtesy lamp and secure the retainers (2b).
4. Connect the negative battery cable.
