Removal And Installation: Rear

NOTE:

THE REAR OVERHEAD LED LAMP IS SERVICED AS AN ASSEMBLY.

REMOVAL

  1. Disconnect and isolate the negative battery cable.

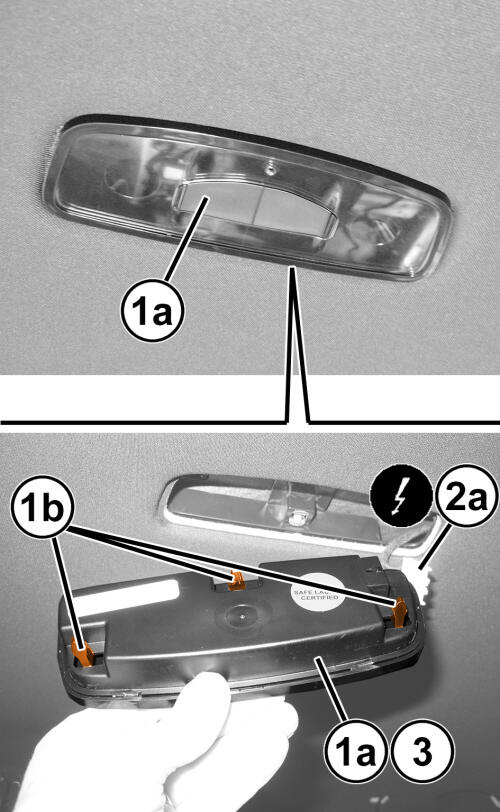

    GC0194748Courtesy of CHRYSLER GROUP, LLC
  2. Releasing the inner retainers (1b) and lower the rear overhead lamp (1a).
  3. Disconnect the wiring harness connector (2a) from the rear overhead lamp.
  4. Remove the lamp.
    NOTE:

    The dome light bulbs are LEDs and cannot be changed.

INSTALLATION

  1. Position the rear overhead lamp for installation.

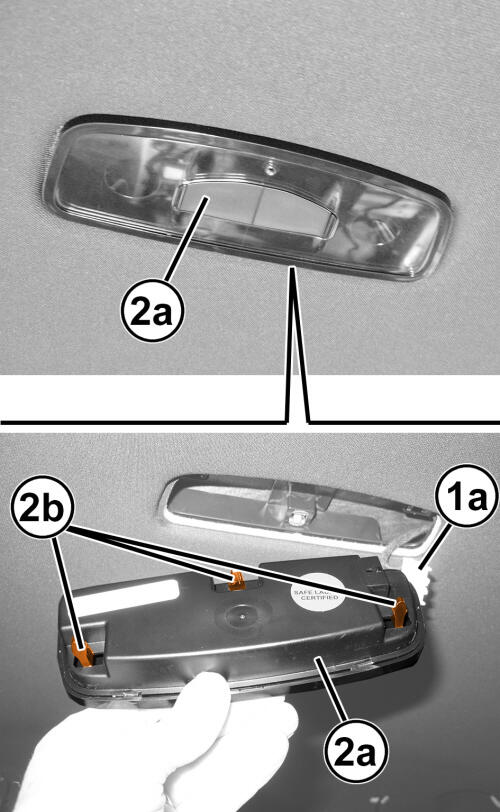

    GC0193349Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector (1a) to the lamp (2a).
  3. Install the lamp on the panel and secure all three retainers (2b).
  4. Connect the negative battery cable.
