Lamp And Bulb

REMOVAL

1. Disconnect the negative battery terminal.

   Courtesy of CHRYSLER GROUP, LLC

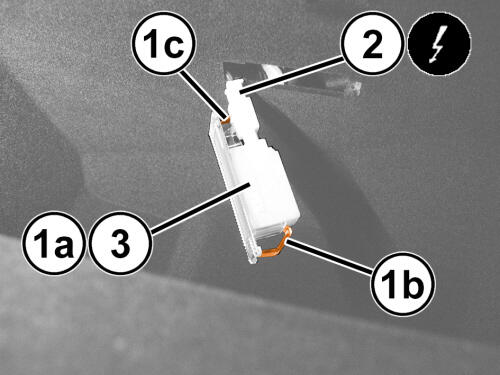

2. Working on the upper side of the glove box compartment, remove the lamp (1a) by releasing the retainers (1b and 1c).
3. Disconnect the wiring harness connector (2) from the lamp.

   Courtesy of CHRYSLER GROUP, LLC

4. If the bulb (1c) needs to be removed, release the retainers (1a and 1b) and open the lamp housing.

INSTALLATION

1. Inspect the glove compartment box lamp, bulb and wiring harness connector integrity.

   Courtesy of CHRYSLER GROUP, LLC

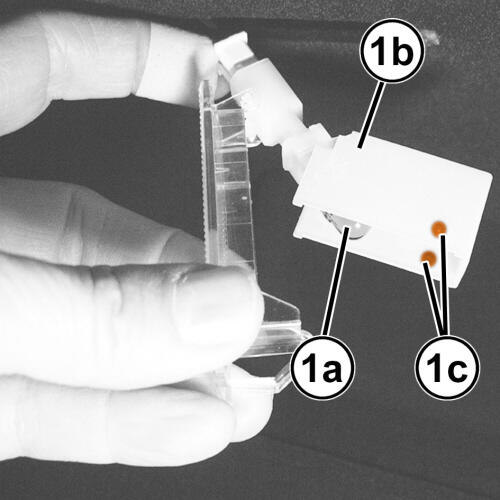

2. If removed, insert the bulb (1a), then close the lamp housing (1b) and secure the retainers (1c).

   Courtesy of CHRYSLER GROUP, LLC

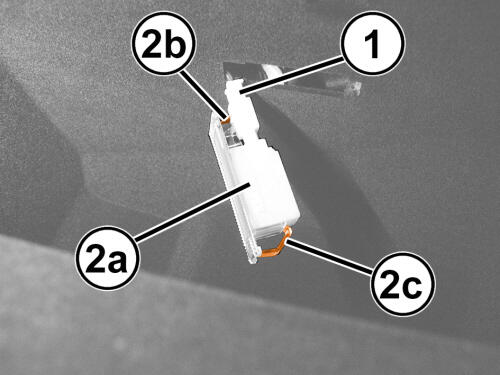

3. Connect the wiring harness connector (1) to the lamp.
4. Install the lamp (2a) in the glove compartment box housing and secure the retainers (1b and 2c).
5. Connect the negative battery cable.
