Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the glove box compartment. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

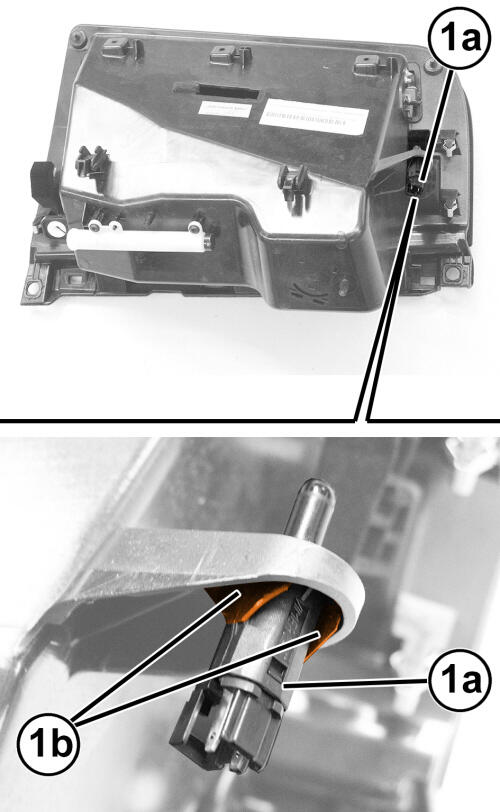

3. Remove the glove box compartment switch (1a) from the retainers (1b).

INSTALLATION

1. Inspect the glove box compartment switch and wiring harness connector integrity.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the glove box compartment switch (1a) and secure the retainers (1b).
3. Connect the negative battery cable.
