Battery Distribution Unit C5 (Standard) Connector End View (D3182E)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: 1/04576/44

Part Description: Not Available

Connector No: D3182E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

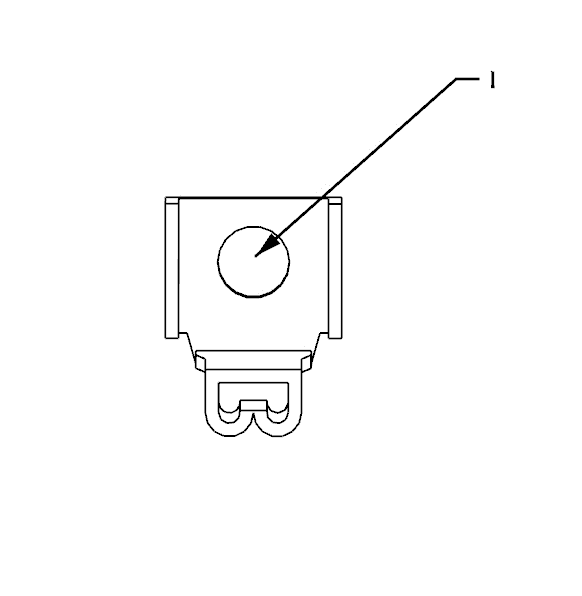

Fig 1: Battery Distribution Unit C5 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Battery Distribution Unit C5 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
