Battery Distribution Unit C6 (2.0L/2.2L) Connector End View (D3182F)

Harness-Family: Battery_Positive_20L_22L

Color: NA

Gender: FEMALE

Part Number: KKTE14281_01

Part Description: Not Available

Connector No: D3182F

Option: 2.0L/2.2L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Battery Distribution Unit C6 Connector End View (2.0L/2.2L)

Courtesy of CHRYSLER

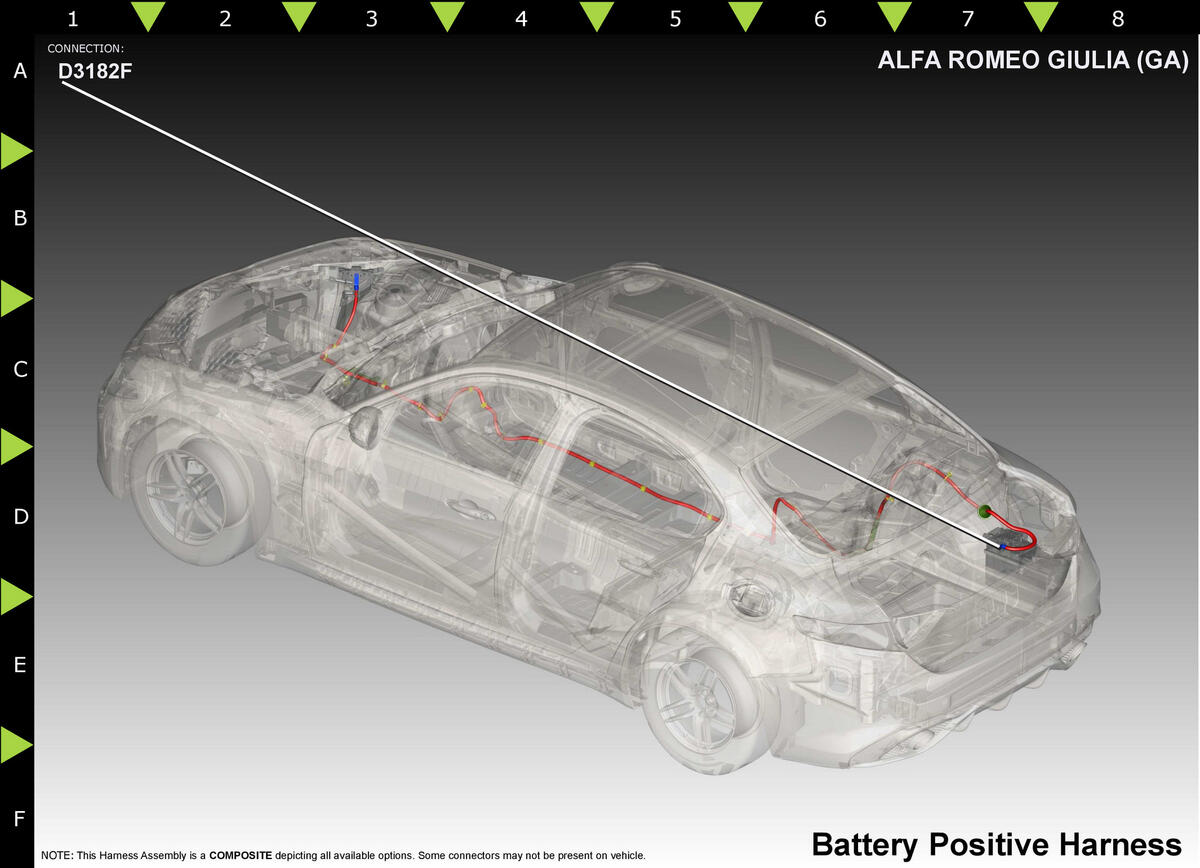

Fig 2: Battery Distribution Unit C6 Component Location (2.0L/2.2L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
