Crankcase Breather Tube

REMOVAL

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

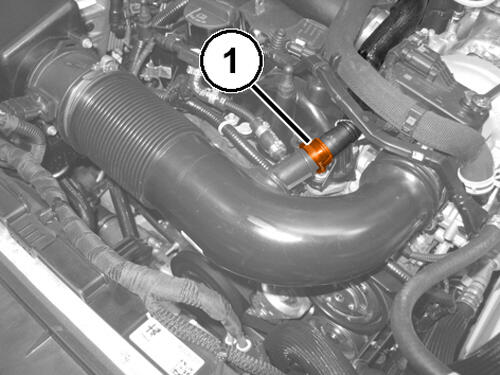

2. Disconnect the crankcase breather tube quick coupling (1).

   Courtesy of CHRYSLER GROUP, LLC

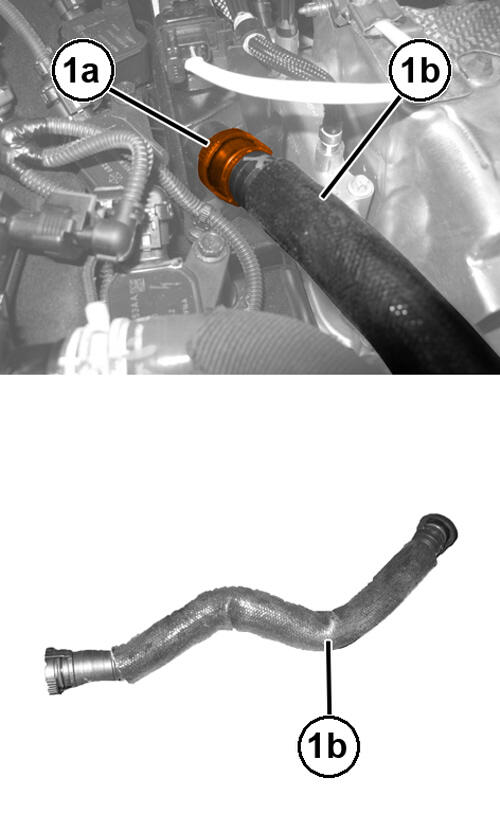

3. Disconnect the quick coupling (1a) and remove the crankcase breather tube (1b).

INSTALLATION

1. Install the crankcase breather tube and connect the quick couplings.
2. Installation the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
