Idling Engine Oil Vapor Inlet Line

REMOVAL

1. Remove the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

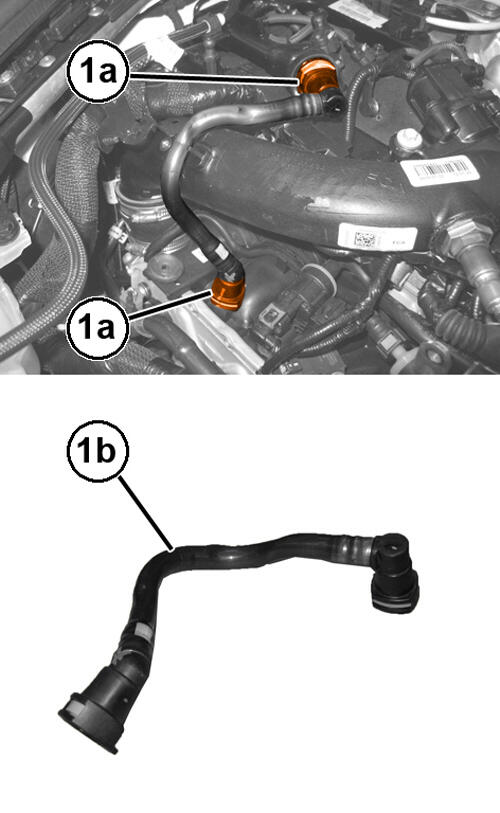

2. Disconnect the quick couplings (1a) and remove the idling engine oil vapor intake pipe (1b).

INSTALLATION

1. Install the engine idling oil vapor intake pipe and tighten the quick couplings.
2. Install the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
