Front Fuel Vapor Line

REMOVAL

1. Remove the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

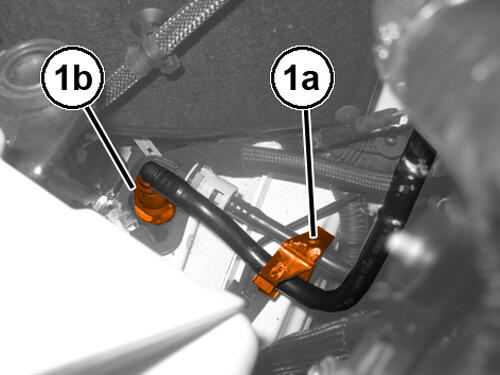

2. Open the retaining clip (1a) and disconnect the quick coupling (1b) of the front fuel vapor line.

   Courtesy of CHRYSLER GROUP, LLC

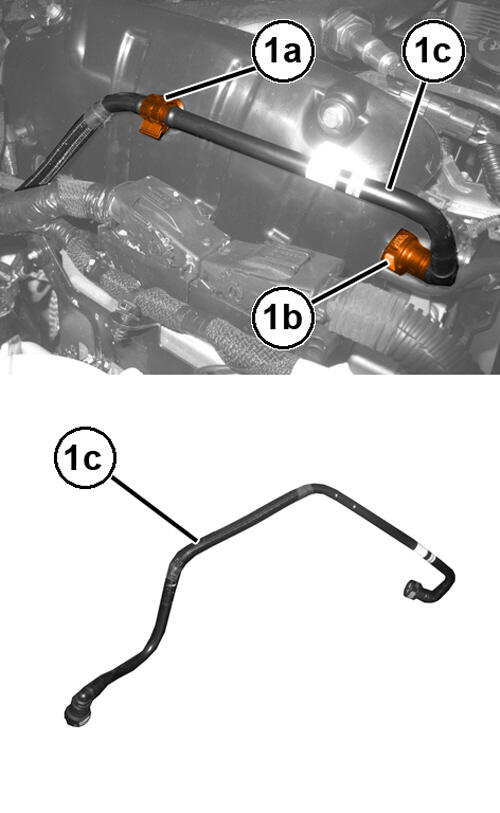

3. Open the clip (1a), disconnect the quick coupling (1b) and remove the front fuel vapor pipe (1c).

INSTALLATION

1. Install the front fuel vapor line and connect the quick couplings and engage the relative retaining clips.
2. Install the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL AND INSTALLATION .
