Fuel Vapor Line From Tank To Triple Line Into Activated Vapor Canister Intake

REMOVAL

1. Remove the fuel tank. Refer to TANK, FUEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

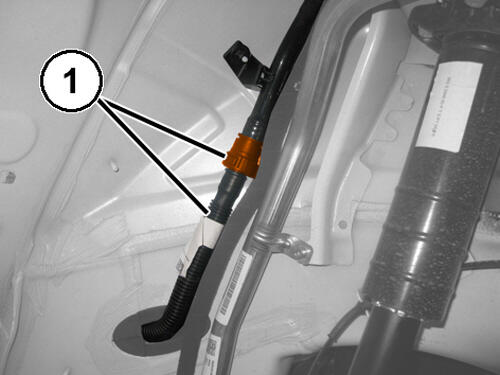

2. Disconnect the quick connector (1) of the fuel vapor pipe from tank to the activated vapor canister inlet triple line.

   Courtesy of CHRYSLER GROUP, LLC

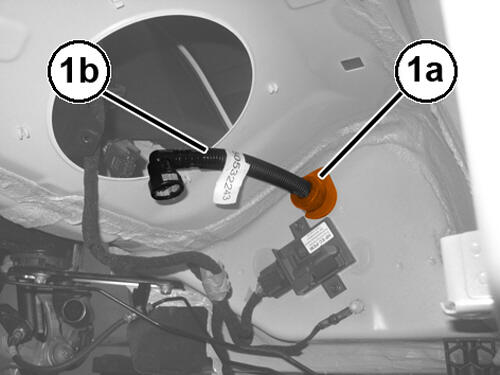

3. Release the block (1a) from the body and remove the fuel vapor pipe from the fuel tank to the activated vapor canister inlet triple line (1b).

INSTALLATION

1. Install the fuel vapor line from the fuel tank to activated vapor canister inlet triple line, engage the block to the body and connect the quick connector.
2. Install the fuel tank. Refer to TANK, FUEL, REMOVAL AND INSTALLATION .
