Crankcase Pressure Sensor

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

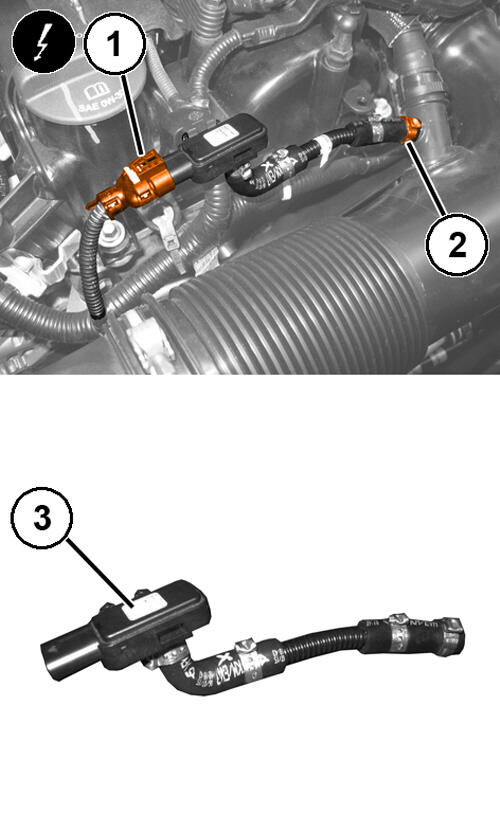

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the crankcase pressure sensor wire harness connector (1).
4. Loosen the clamp and disconnect the oil vapor intake hose (2) from the turbocharger air supply hose.
5. Open the clip and remove the crankcase pressure sensor (3) complete with pipe.

INSTALLATION

1. Install the crankcase pressure sensor complete with pipe and engage it in the clip.
2. Connect the oil vapor intake pipe to the turbocharger air supply hose and close the clamp.
3. Connect the crankcase pressure sensor wire harness connector.
4. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
