Right Fuel Vapor Line

REMOVAL

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

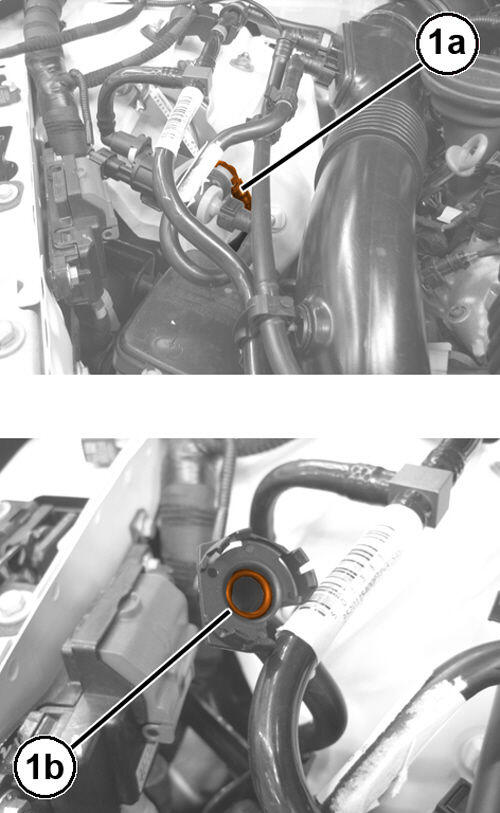

2. Disconnect the quick coupling (1a) of the pipe between the fuel vapors solenoid valve and the right intake manifold, complete with O-ring (1b).

   Courtesy of CHRYSLER GROUP, LLC

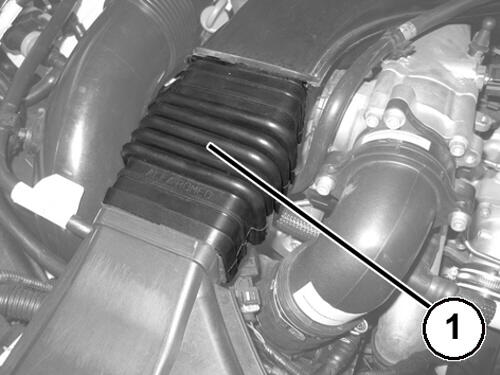

3. Remove the corrugated sleeve (1) from the cold air intake.

   Courtesy of CHRYSLER GROUP, LLC

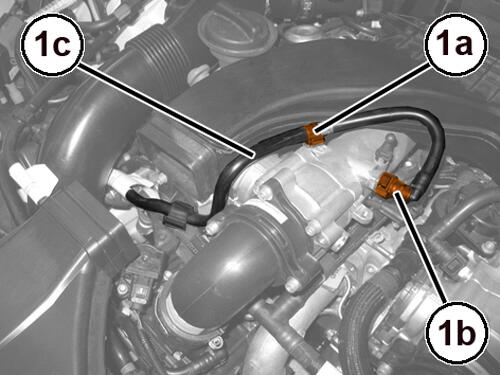

4. Open the retaining clip (1a), disconnect the quick coupling (1b) and remove the line between the fuel vapors solenoid valve and the right intake manifold (1c).

INSTALLATION

1. Replace the quick coupling O-ring on the fuel vapors solenoid valve side.
2. Install the line between the fuel vapors solenoid valve and the right intake manifold, connect the quick connectors and close the retaining clip.
3. Install the corrugated sleeve in its housing and connect it to the cold air intake.
4. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
