Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the left rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

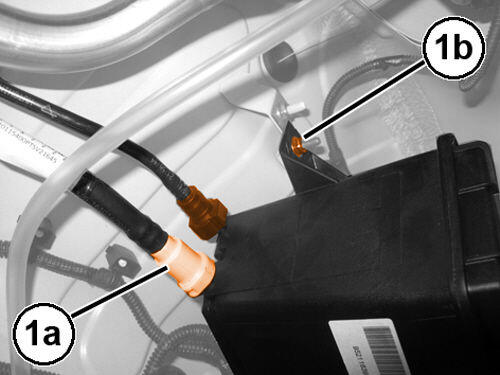

Disconnect the quick connectors (1a) and remove the nuts (1b).

Courtesy of CHRYSLER GROUP, LLC

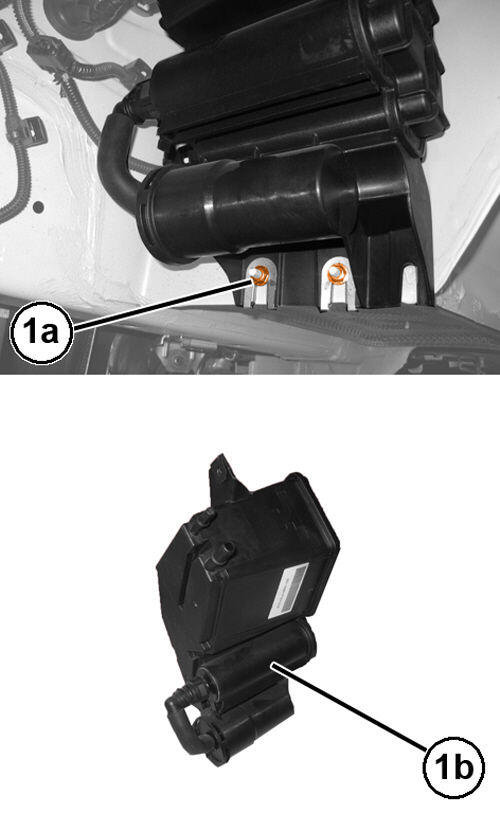

Remove the nuts (1a) and the vapor canister (1b).

INSTALLATION

Install the vapor canister in its housing and securely tighten the nuts.
Connect the quick connectors.
Install the left rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
