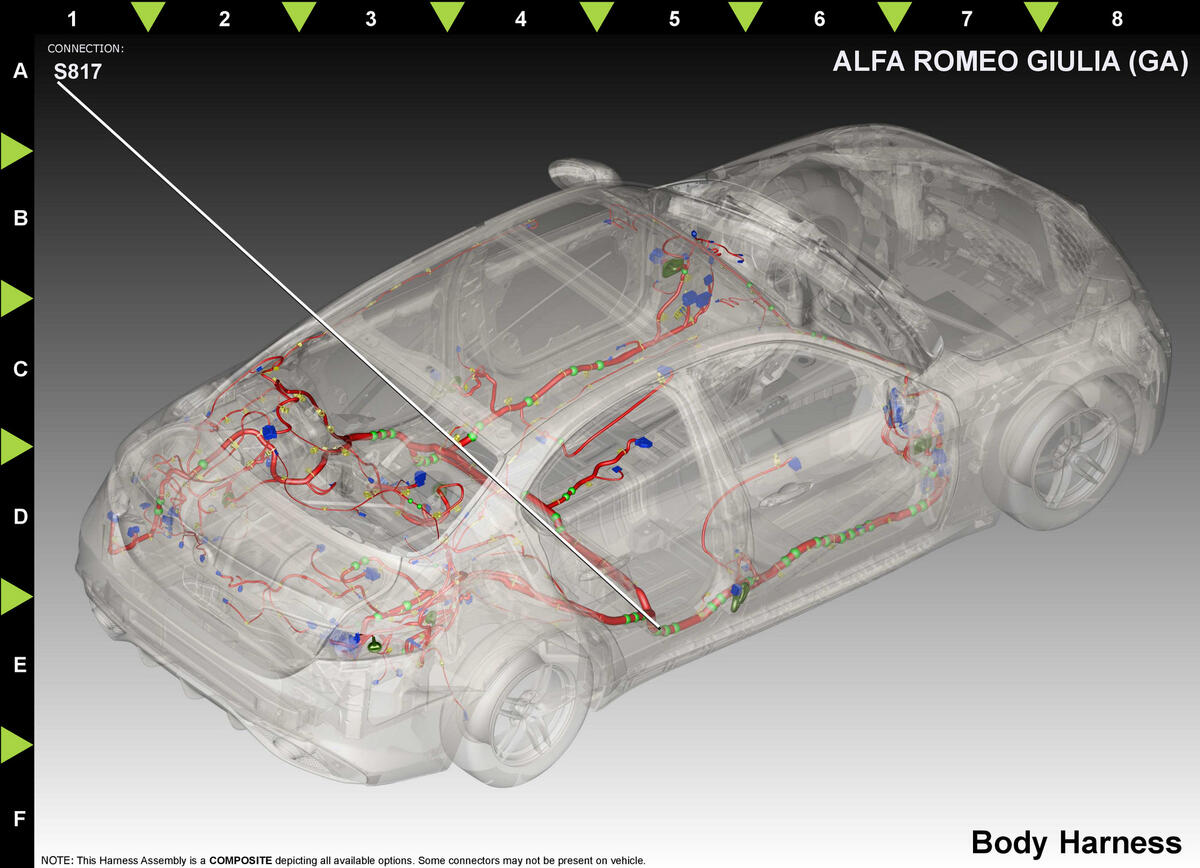

S817 (Standard) Connector End View (S817)
Harness-Family: Body
Color: NA
Gender: FEMALE
Part Number: AGV36375
Part Description: Not Available
Connector No: S817
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
