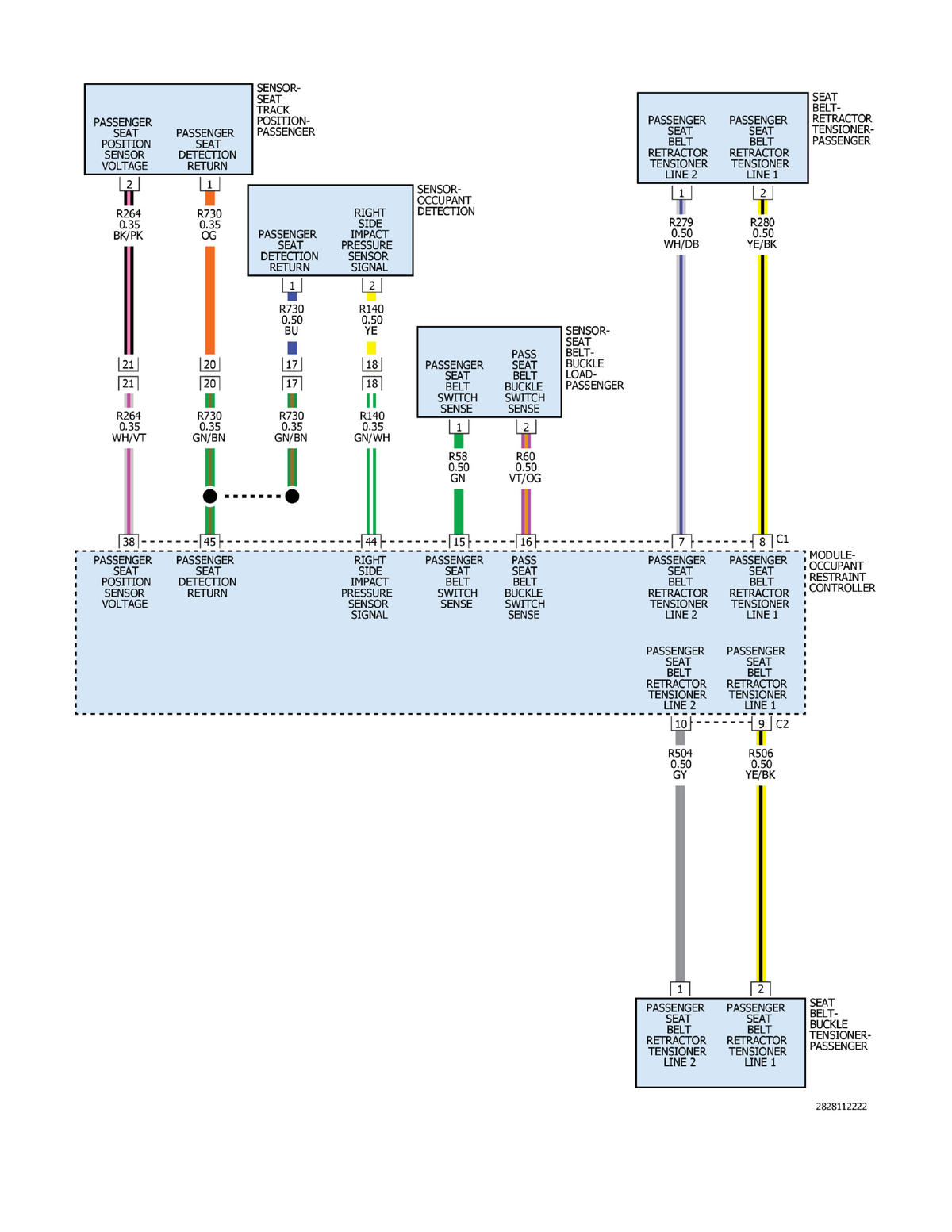

B2734-12-Passenger Presence Detector-Circuit Short To Battery: Wiring Diagram

For a complete RESTRAINT SYSTEMS wiring diagram, Refer to the appropriate system wiring diagram  .

Courtesy of CHRYSLER GROUP, LLC
