Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the rear exhaust. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 2.0L or MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 2.8L .
3. Remove the rear heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION, 2.0L or SHIELD, HEAT, REMOVAL AND INSTALLATION, 2.8L .
4. Remove the rear drive shaft. Refer to REMOVAL AND INSTALLATION .
5. Remove the Left Hand (LH) or Right Hand (RH) half shaft. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

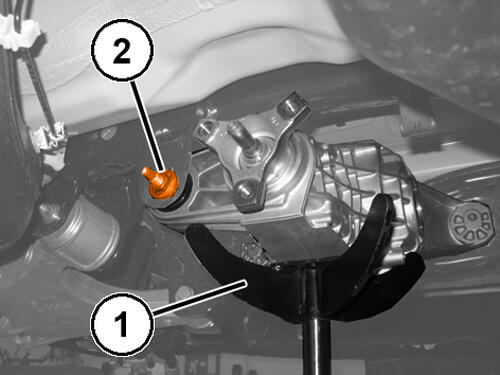

6. Support the rear axle with a jack stand (1).
7. Remove the rear axle front mount bolt and nut (2).

   Courtesy of CHRYSLER GROUP, LLC

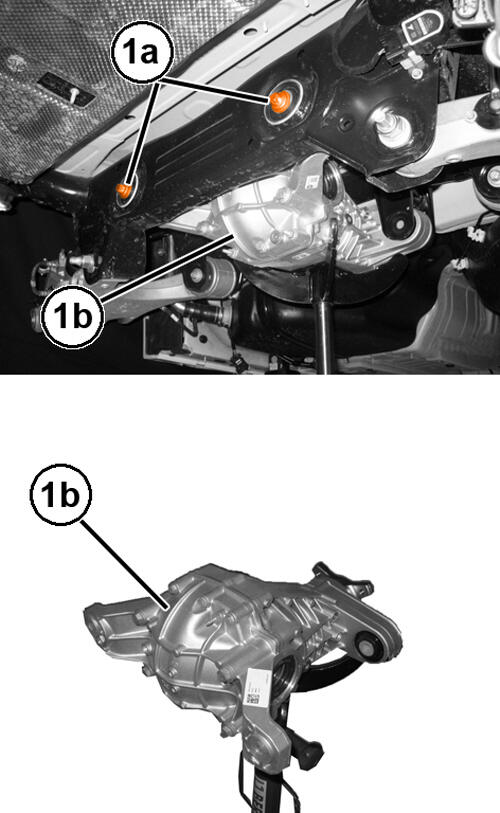

8. Remove the rear axle rear mount bolts (1a).
9. Remove the rear axle (1b) from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Position the rear axle (1b) in the vehicle.
2. Install the rear axle mount bolts (1a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the rear axle front mount bolt and nut (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
4. Remove the jack stand (1).
5. Install the LH or RH half shaft. Refer to REMOVAL AND INSTALLATION .
6. Install the rear heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION, 2.0L or SHIELD, HEAT, REMOVAL AND INSTALLATION, 2.8L .
7. Install the rear exhaust. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 2.8L or MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 2.8L .
8. Check and fill the rear axle fluid as necessary. Refer to STANDARD PROCEDURE  .
9. Remove the support and lower the vehicle.
10. Connect the negative battery cable. Refer to CABLES, BATTERY, REMOVAL AND INSTALLATION .
