Rear Axle Fluid Drain And Fill

NOTE:

The rear differential oil change is not a scheduled maintenance service.

NOTE:

The procedure described here must only be used if replacing components resulting in a loss of oil.

NOTE:

Be sure the vehicle is on a level surface, or is hoisted in a level manner, in order to obtain the correct fill level.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the rear underbody protection. Refer to BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION .

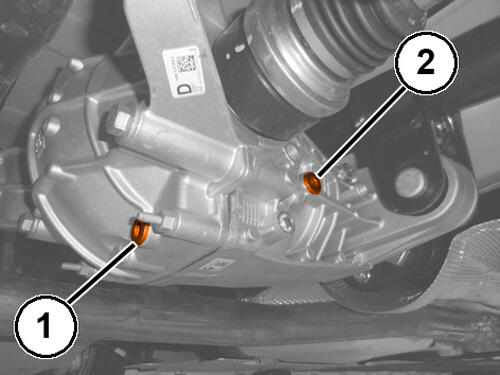

    GC0198388Courtesy of CHRYSLER GROUP, LLC
  3. Remove the axle drain plug (1), fill plug (2) and drain the rear axle fluid.
  4. Clean and install the rear axle drain plug (1) tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Fill the rear axle with the specified fluid and amount. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
    GC0198388Courtesy of CHRYSLER GROUP, LLC
  6. Clean the rear axle fill plug (2), install and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the rear under body protection. Refer to BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION .
  8. Remove the support and lower the vehicle.
