Removal And Installation: Removal
- Disconnect and isolate the negative battery cable.
- Raise and support the vehicle.NOTE:
Work on both sides.
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
- Remove the appropriate headlamp assembly, left or right for the horn being removed. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .

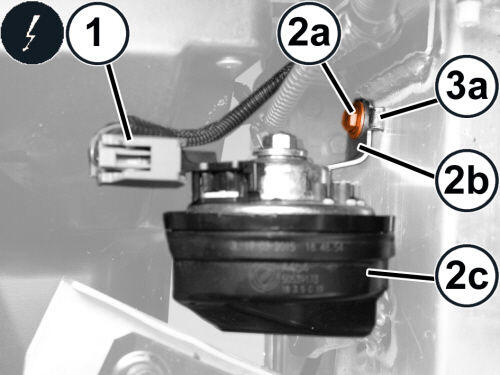

- Disconnect the wire harness connector (1) for the horn.
- Remove the fastener (2a) for the horn bracket (2b).NOTE:
Do not separate the horn from the bracket, to avoid adversely affecting its operation.
- Remove the horn (2c) with bracket (2b) by releasing the clamp (3a).
