Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

Check that the horn and bracket are not damaged and, if necessary, make an electrical test.
Position the bracket and horn.

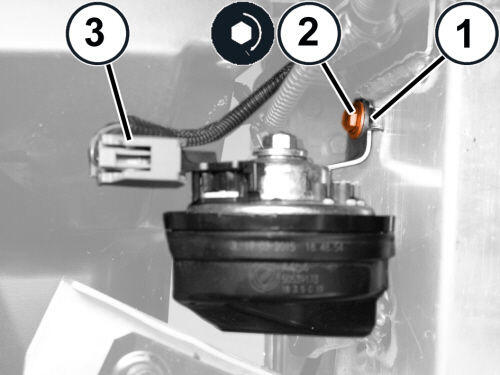

Install the fastener (2) and tighten it to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Connect the wire harness connector for the horn.
Install the appropriate headlamp assembly, left or right for the horn being installed. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
Remove the support and lower the vehicle.
Connect the negative battery cable.
