Engine And Transmission Separation From CROSSMEMBER AWD

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the four-wheel drive control module electrical connection.

   Courtesy of CHRYSLER GROUP, LLC

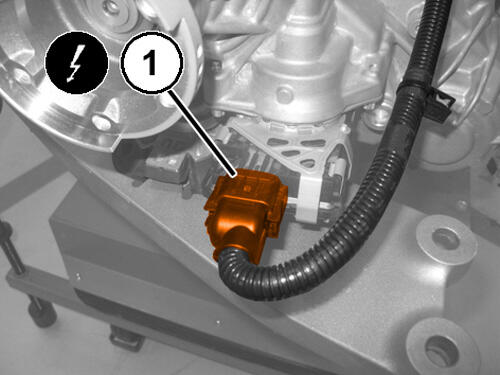

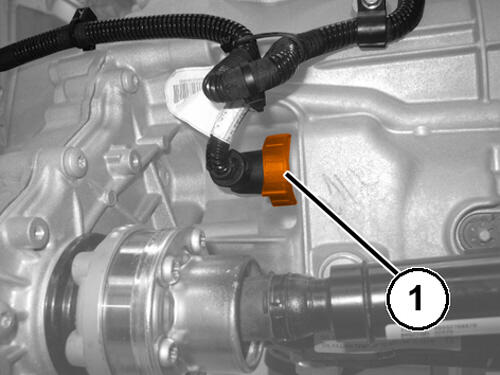

2. Turn the ring nut (1) counterclockwise to disconnect the solenoid valve assembly connector.

   Courtesy of CHRYSLER GROUP, LLC

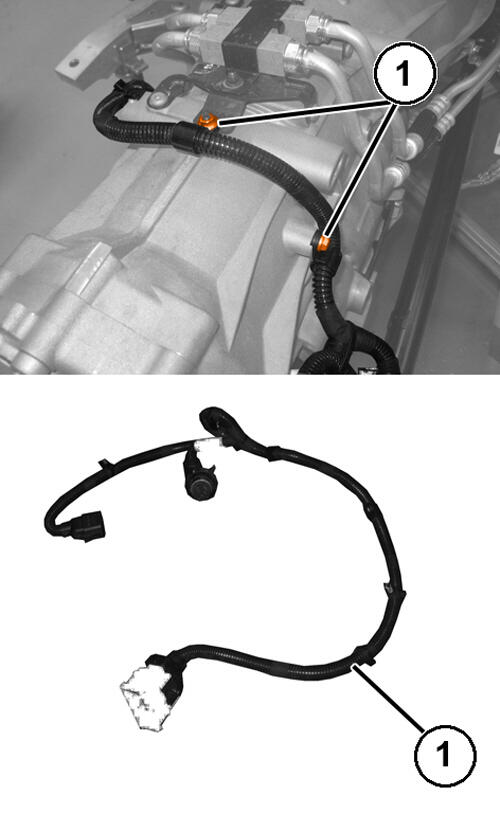

3. Remove the bolts and remove the automatic transmission wiring.

   Courtesy of CHRYSLER GROUP, LLC

4. Remove the bolt (1a) and the plate (1b).
5. Disconnect the transmission fluid supply and return pipe connectors (2).

   Courtesy of CHRYSLER GROUP, LLC

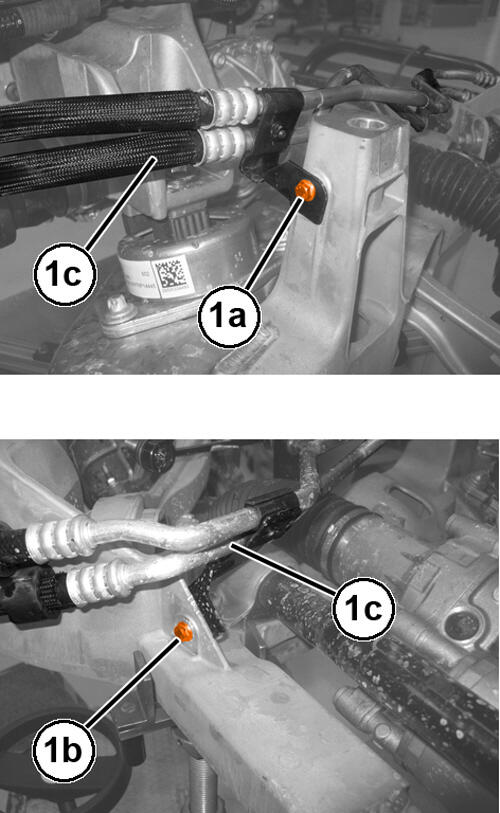

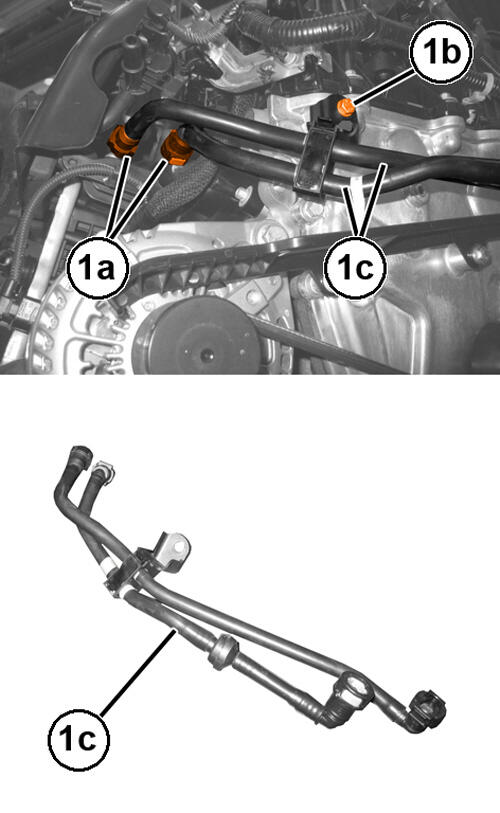

6. Remove the bolt (1a) and (1b) securing the transmission fluid lines (1c) to the front suspension crossmember.

   Courtesy of CHRYSLER GROUP, LLC

7. Remove the bolt (1) securing the transmission fluid lines to the transmission bell housing.

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the bolts (1a) securing the thermostat valve support bracket (1b).

   Courtesy of CHRYSLER GROUP, LLC

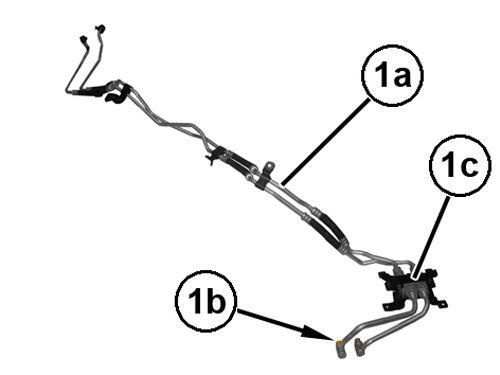

9. Remove the transmission fluid lines (1a) complete with O-rings (1b) and thermostat valve (1c).

   Courtesy of CHRYSLER GROUP, LLC

10. Disconnect the quick connectors (1a), remove the bolt (1b) and the vacuum and fuel vapor lines (1c).

    Courtesy of CHRYSLER GROUP, LLC

11. Install a suitable bracket (1) for lifting the powertrain assembly as shown in the illustration and securely tighten the bolt.

    Courtesy of CHRYSLER GROUP, LLC

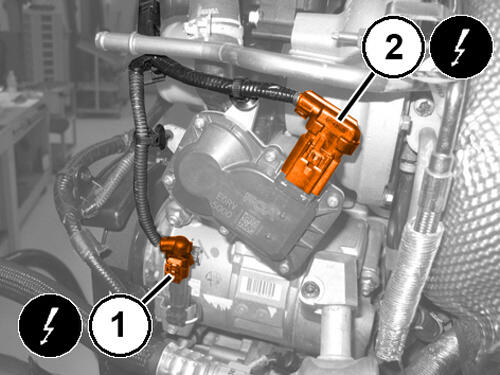

12. Disconnect the A/C compressor wire harness connector (1).
13. Disconnect the low pressure EGR solenoid valve wire harness connector (2).

    Courtesy of CHRYSLER GROUP, LLC

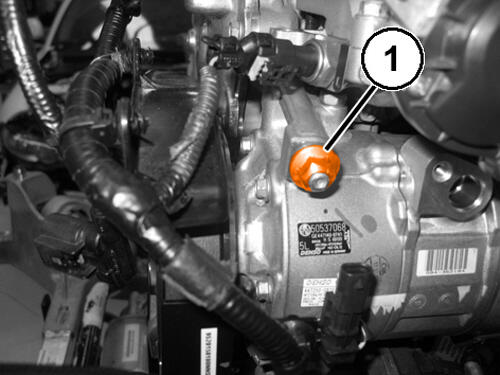

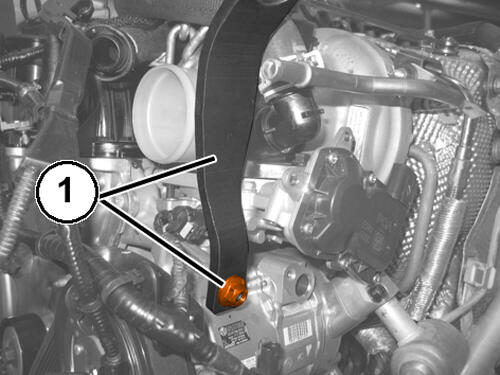

14. Remove the upper nut (1) from the A/C compressor.

    Courtesy of CHRYSLER GROUP, LLC

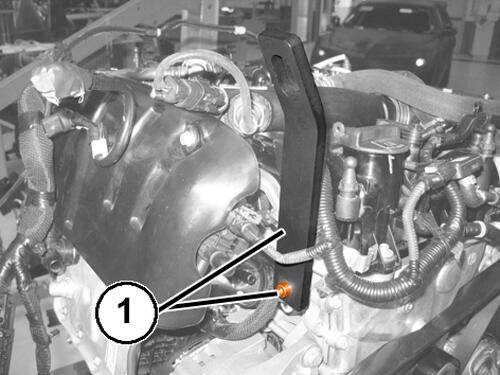

15. Install a suitable bracket (1) for lifting the powertrain assembly as shown in the illustration and securely tighten the bolt.

    Courtesy of CHRYSLER GROUP, LLC

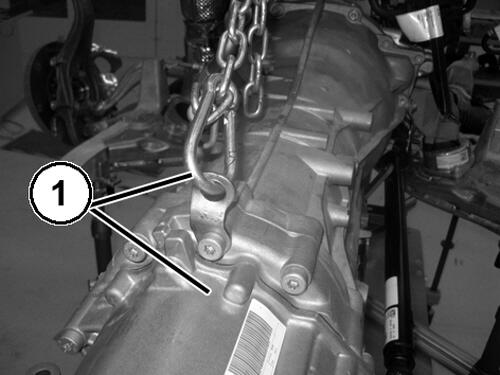

16. Secure the transmission unit as shown in the illustration (1).

    Courtesy of CHRYSLER GROUP, LLC

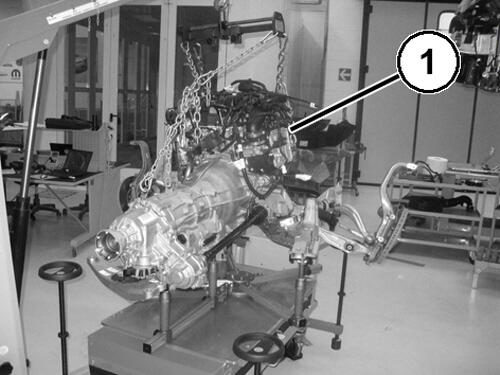

17. Using a suitable lift and balance, support the powertrain assembly (1).

    Courtesy of CHRYSLER GROUP, LLC

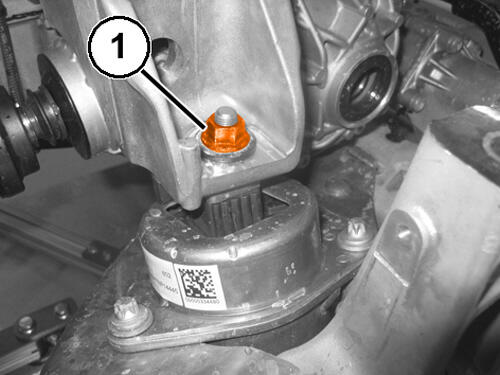

18. Working on both sides, remove the nuts (1) securing the engine mount isolator to the bracket.
19. Lift and remove the powertrain assembly from the front suspension crossmember and position it on a suitable resting surface.

INSTALLATION

1. Using the tools used for removing, lift the power unit and position it on the front suspension crossmember taking care to engage the engine mount isolator pins into their respective holes on the engine brackets.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the nuts securing the engine mount isolator to the bracket and tighten to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Remove the tools and the brackets used for lifting the powertrain assembly.

   Courtesy of CHRYSLER GROUP, LLC

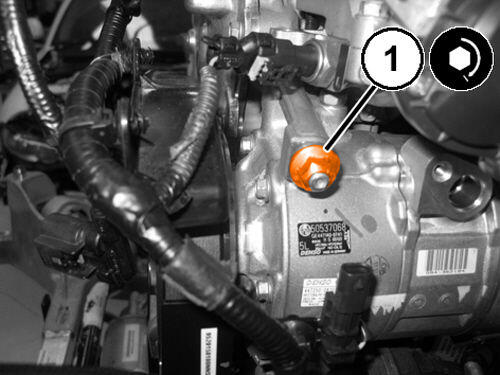

4. Install a NEW  upper nut securing the A/C compressor and tighten to the proper specification Refer to TECHNICAL SPECIFICATIONS .
5. Connect the low pressure EGR solenoid valve wire harness connector.
6. Connect the A/C compressor wire harness connector.
7. Install the vacuum and fuel vapor lines, securely tighten the bolt of the intermediate bracket and connect the quick connectors.
8. Using a NEW  O-ring, install the transmission fluid pipe.
9. Install and securely tighten the thermostat mounting bracket bolts.
10. Install the bolt securing the transmission fluid lines to the transmission bell housing and securely tighten.
11. Install the bolts securing the transmission fluid lines to the front suspension crossmember and securely tighten.
12. Connect the transmission fluid supply and return lines engaging the plate and securely tightening the bolt.
13. Position the automatic transmission wiring and tighten the bolts.
14. Connect the solenoid valve assembly wire harness connector and turn the lock ring nut.
15. Connect the four-wheel drive control module electrical connection.
