Engine Mounting On Stand - RWD

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

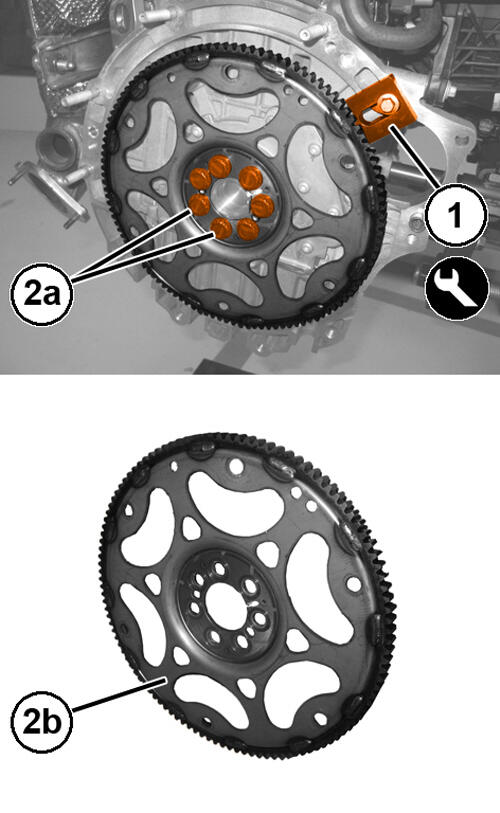

1. Install the (special tool #10272, Tool, Flywheel Locking) (1) or the Flywheel Lock 1860846001.
2. Remove the bolts (2a) and the engine flexplate (2b). Discard the bolts, they can not be reused.
3. Remove any sealant residues from the flexplate bolt holes.

   Courtesy of CHRYSLER GROUP, LLC

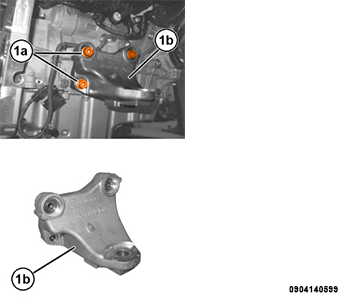

4. Remove the bolts (1a) and the right side front engine mount bracket (1b).

   Courtesy of CHRYSLER GROUP, LLC

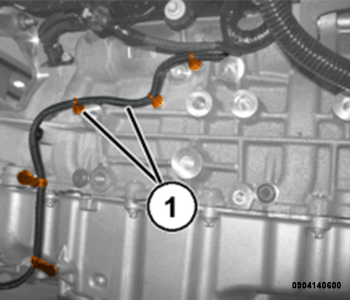

5. Release the wiring retaining clips (1) and move the wiring aside.

   Courtesy of CHRYSLER GROUP, LLC

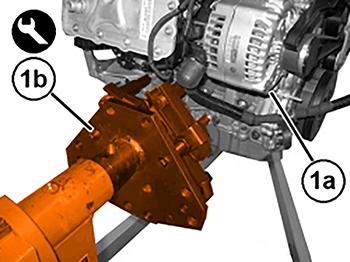

6. If available, install the Engine Overhaul Stand 1871000000 (1b) on the engine block (1a).

   Courtesy of CHRYSLER GROUP, LLC

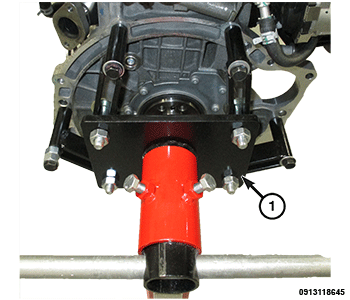

7. If the Engine Overhaul Stand 1871000000 is not available, install the maintenance stand mounting bracket (1) on the engine block.
8. With the aid of a hydraulic lift, install the engine block and mounting bracket to the maintenance stand.

INSTALLATION

1. With the aid of a hydraulic lift, remove the engine from the maintenance stand and remove the maintenance stand mounting bracket from the engine block.

   Courtesy of CHRYSLER GROUP, LLC

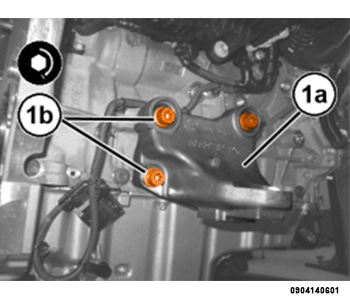

2. Install the right side front engine mount bracket (1a) and tighten the NEW  bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

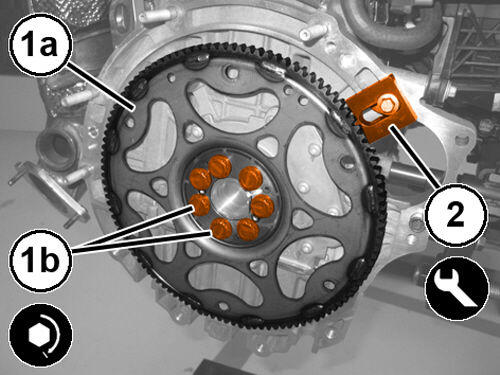

3. Install the engine flexplate (1a) and tighten the NEW  bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
4. Remove the (special tool #10272, Tool, Flywheel Locking) (2) or the Flywheel Lock 1860846001.
