Top Engine Cover

REMOVAL

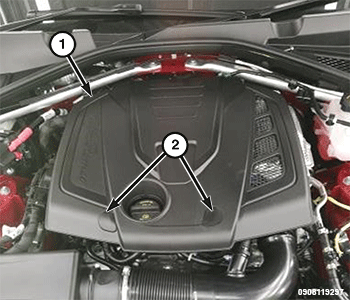

GC0196540Courtesy of CHRYSLER GROUP, LLC
  1. Open the bolt covers (2) on the top engine cover (1).

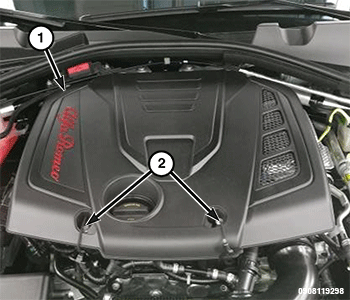

    GC0196035Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (2) and remove the top engine cover (1) complete with engine oil filler seal.

INSTALLATION

  1. Install the top engine cover complete with engine oil filler seal, tighten the bolts and install the bolt covers.
