Air Filter

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

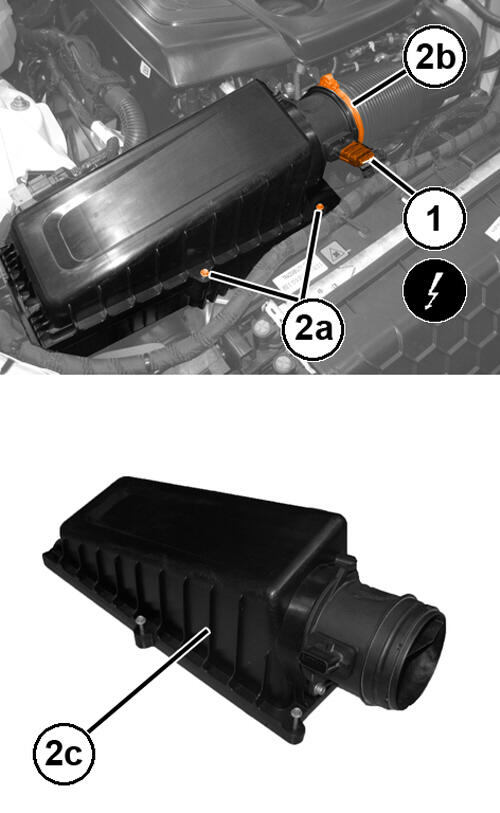

2. Disconnect the mass air flow meter wire harness connection (1).
3. Remove the screws (2a), loosen the clamp (2b) and remove the air filter cover (2c) with mass air flow meter.

   Courtesy of CHRYSLER GROUP, LLC

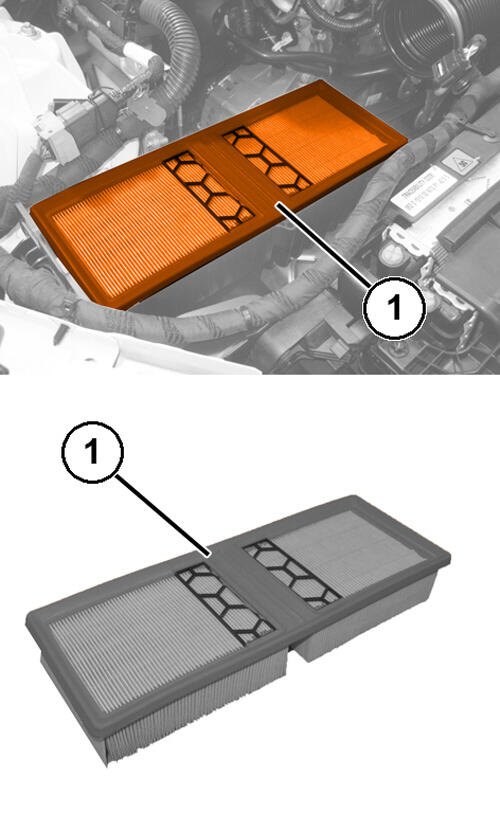

4. Remove the air filter element (1).

INSTALLATION

1. Install the air filter element.
2. Install the air filter cover with mass air flow meter, securely tighten the clamp and the air filter cover retaining screws.
3. Connect the mass air flow meter wire harness connection.
4. Connect the negative battery cable.
