Air Cleaner Body

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the mass air flow sensor. Refer to SENSOR, MASS AIRFLOW (MAF), REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

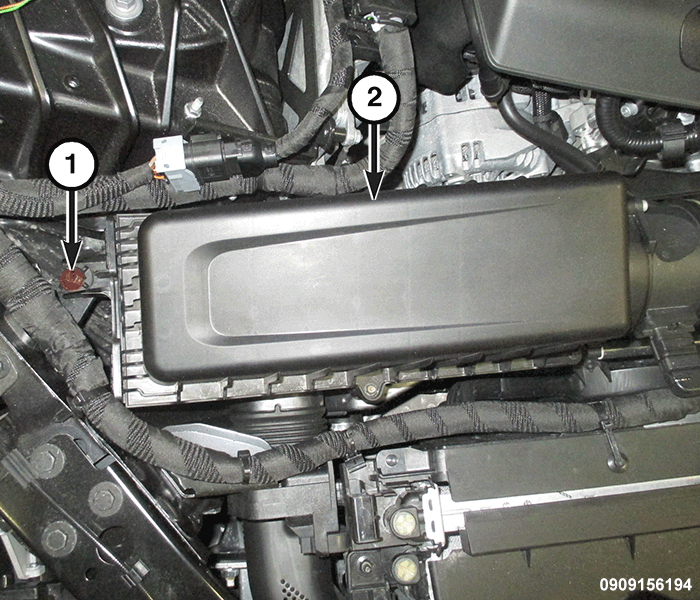

3. Remove the air cleaner body fastener (1).
4. Disengaging the air cleaner body (2) from the lower rubber grommets and from the cold air intake.

INSTALLATION

1. Install the air cleaner body, engaging it in the lower rubber grommets and in the cold air intake.
2. Install the air cleaner body fastener and tighten securely.
3. Install the mass air flow sensor. Refer to SENSOR, MASS AIRFLOW (MAF), REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
