Air Filter Cold Air Intake Tube

REMOVAL

1. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

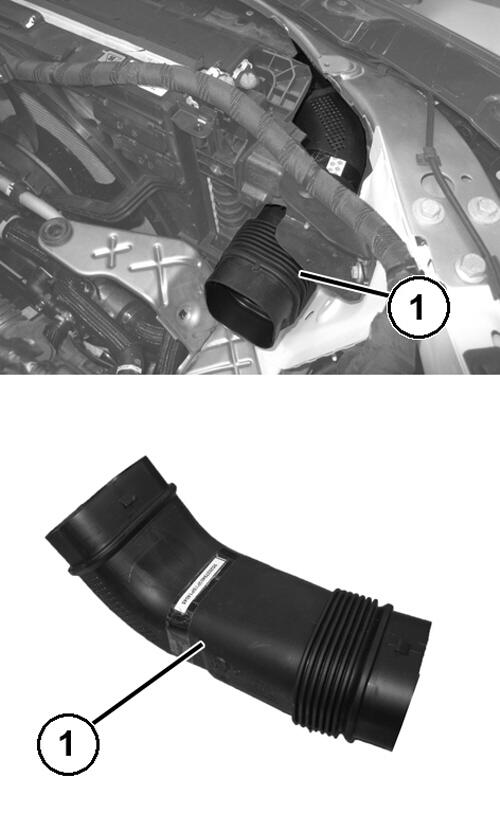

2. Release the cold air intake tube (1) from the air duct and remove it.

INSTALLATION

1. Place the cold air intake tube back in position and engage it with the air duct.
2. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
