Cylinder Head: Inspection

GC0181098Courtesy of CHRYSLER GROUP, LLC

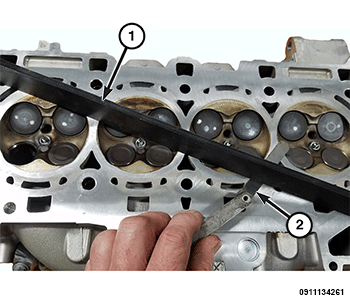

  1. Check the cylinder head for warping with a straight edge (1) and a feeler gauge (2).
  2. The cylinder head must be flat within specification. Refer to SPECIFICATIONS  .
  3. Remove any carbon or varnish deposits from inside of valve guides with a reliable guide cleaner.
  4. Inspect the following components and verify that they are within specification : Refer to SPECIFICATIONS  .
    • Valve Springs
    • Valve Seats
    • Valve Guides
    • Valves
