Hydraulic Lifters

REMOVAL

1. Remove the camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   If the rocker arms are to be reused, identify their positions so that they can be reassembled into their original locations.

2. Remove the rocker arms (1).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   If the hydraulic lifters are to be reused, identify their positions so that they can be reassembled into their original locations.

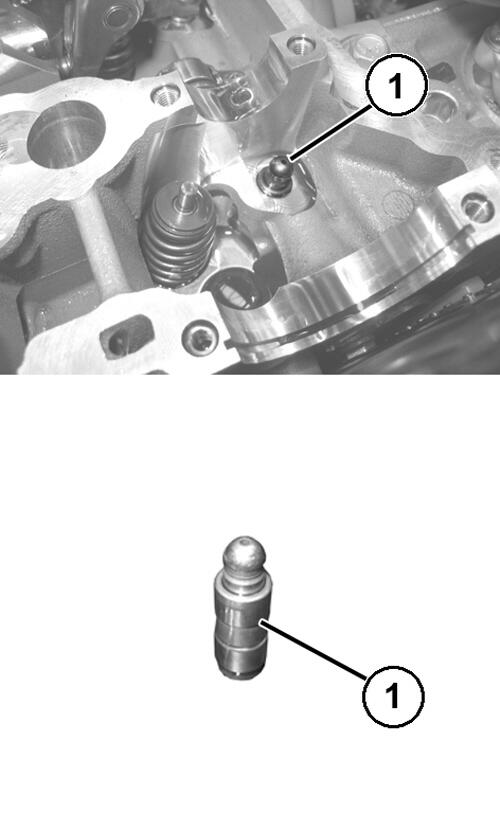

3. Remove the hydraulic lifters (1).

INSTALLATION

1. Verify that the hydraulic lifters are at least partially full of oil. There should be little or no plunger travel when the hydraulic lifter is depressed.
NOTE:

If the hydraulic lifters are being reused, reassemble them into their original locations.

2. Install the hydraulic lifters.
NOTE:

If the rocker arms are being reused, reassemble them into their original locations.

3. Install the rocker arms.
4. Install the camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .
