Exhaust Rocker Arms

REMOVAL

1. Remove the camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   If the rocker arms are to be reused, identify their positions so that they can be reassembled into their original locations.

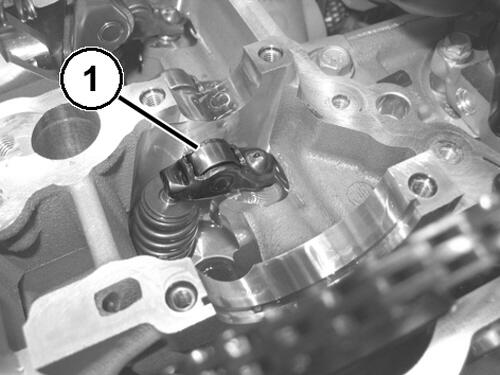

2. Remove the rocker arms (1).

INSTALLATION

1. Lubricate the rocker arms with clean engine oil before installation.
2. Install the rocker arm(s).
   NOTE:

   If the rocker arms are being reused, reassemble them into their original locations.

3. Install the camshaft. Refer to CAMSHAFT, ENGINE, REMOVAL AND INSTALLATION .
