Crankshaft End Play

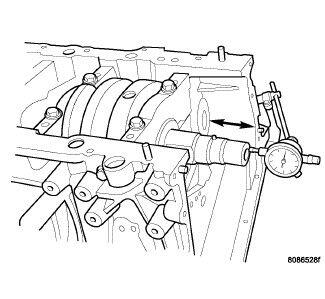

GC0081626Courtesy of CHRYSLER GROUP, LLC
NOTE:

Typical engine block and crankshaft shown in illustration.

  1. Mount a dial indicator to a stationary point at the front of the engine. Locate the probe perpendicular against the nose of the crankshaft.
  2. Move the crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move the crankshaft forward to the limit of travel and read the dial indicator. Compare the measured end play to the specification. Refer to SPECIFICATIONS  .
NOTE:

Crankshaft thrust bearings are not selectable and are only available in a single thickness.
