Feeler Gauge

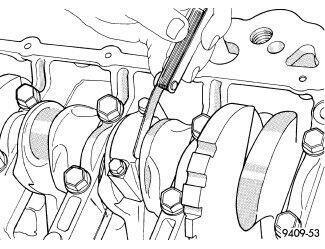

GC0121442Courtesy of CHRYSLER GROUP, LLC
NOTE:

Typical four cylinder engine shown in illustration.

  1. Slide a snug-fitting feeler gauge between the connecting rod and crankshaft journal flange. Compare the measured side clearance to the specification. Refer to SPECIFICATIONS  .
  2. Repeat this procedure for each connecting rod. Rotate the crankshaft for connecting rod accessibility.
