Description And Operation

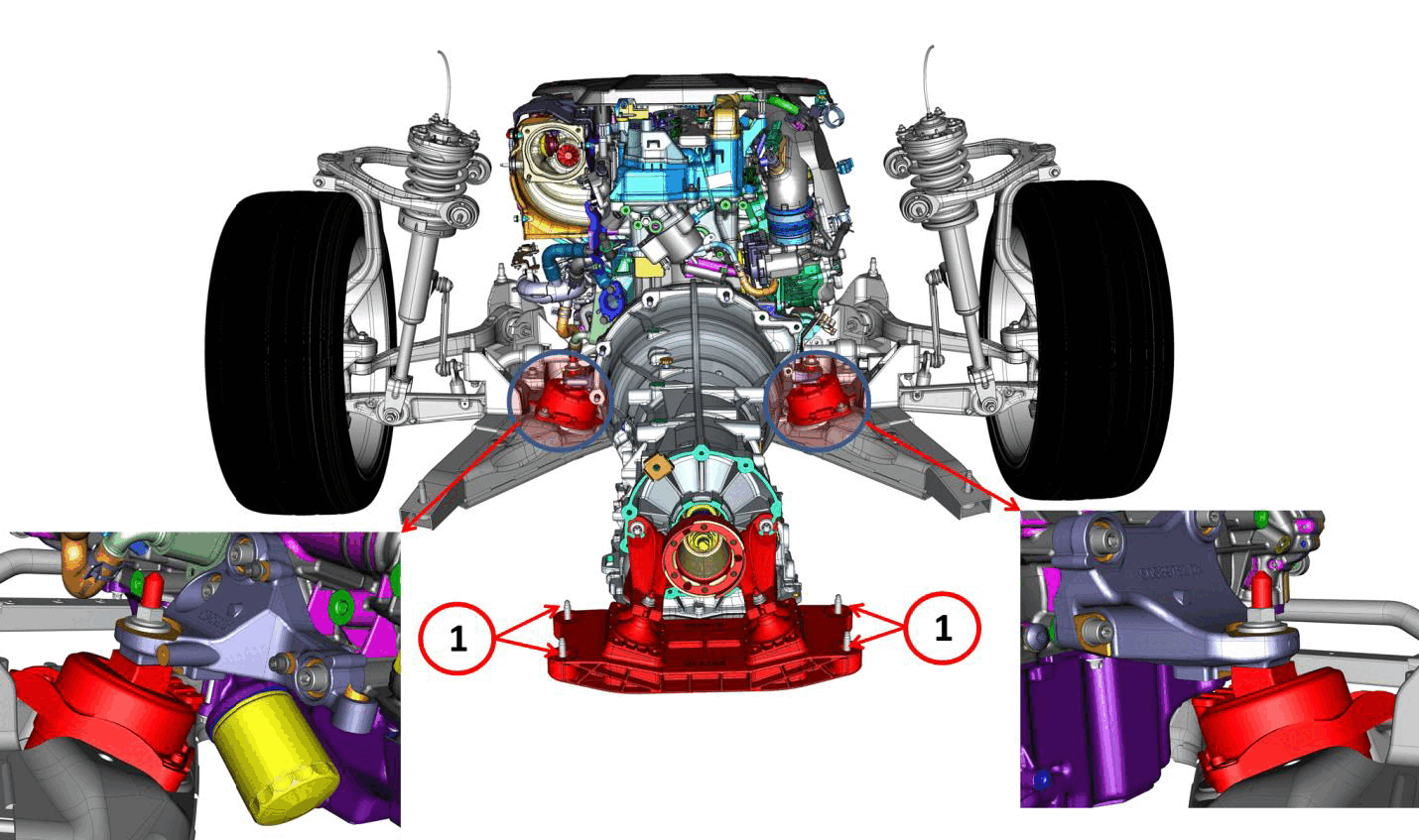

The engine-transmission powertrain is held by three supports, two of which are placed longitudinally along the front suspension to support the engine. The third supports the transmission near the flange attached to the transmission support.
The transmission support is attached to the vehicle floor at four points (1).
