Removal - RWD

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
3. Remove the left front wheelhouse splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

4. Place a suitable hydraulic jack under the oil pan and support the engine to take the weight off of the engine mount.

   Courtesy of CHRYSLER GROUP, LLC

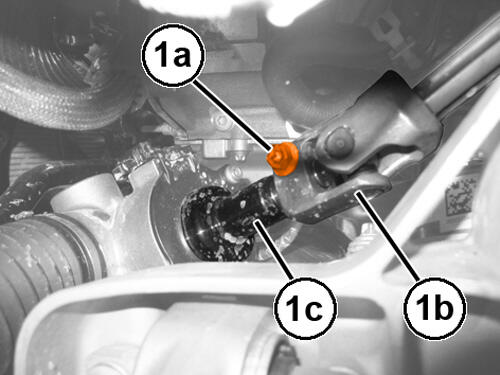

5. Remove and DISCARD  the bolt (1a). Disconnect and reposition the steering column (1b) from the steering gear (1c).

   Courtesy of CHRYSLER GROUP, LLC

6. Remove the nut (1) securing the left engine mount bracket to the engine mount insulator.

   Courtesy of CHRYSLER GROUP, LLC

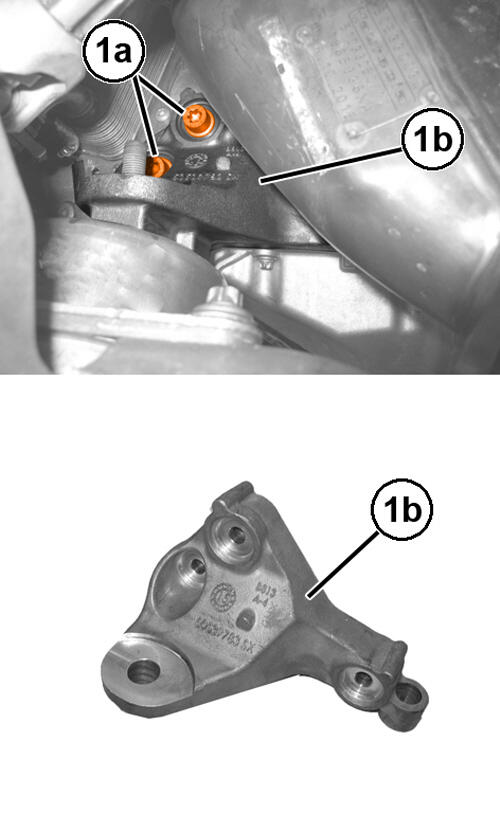

7. Remove and DISCARD  the bolts (1a). Remove the left engine mount bracket (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

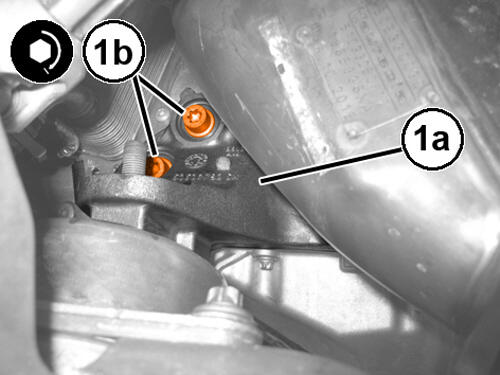

1. Install the left engine mount bracket (1a) and tighten the NEW  bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

2. Operate the hydraulic jack to lower the engine.
3. Tighten the left engine mount bracket to the engine mount insulator nut (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .
4. Remove the hydraulic jack from under the oil pan.

   Courtesy of CHRYSLER GROUP, LLC

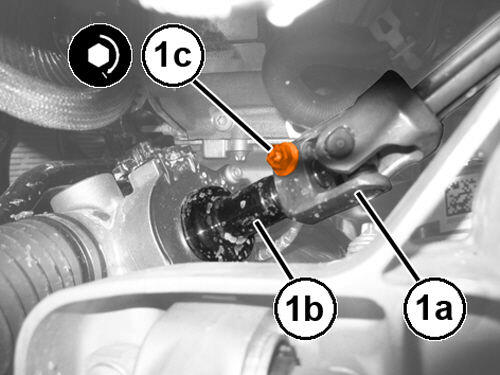

5. Connect the steering column (1a) to the steering gear pinion (1b) and tighten the NEW  bolt (1c) to the proper specification Refer to TECHNICAL SPECIFICATIONS .
6. Install the left front wheelhouse splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
7. Install the front belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION ..
8. Remove the support and lower the vehicle.
