Removal - AWD

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the catalytic convertor. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

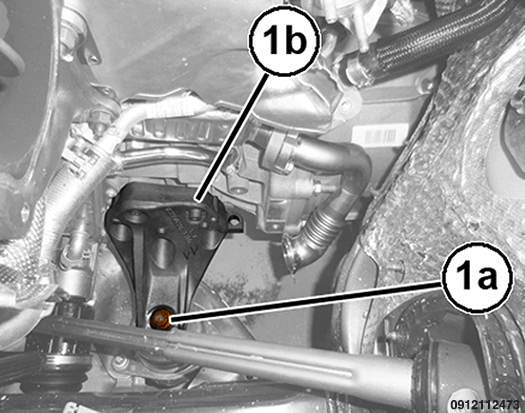

3. Remove the nut (1a) securing the left engine mount bracket (1b) to the engine mount insulator.

   Courtesy of CHRYSLER GROUP, LLC

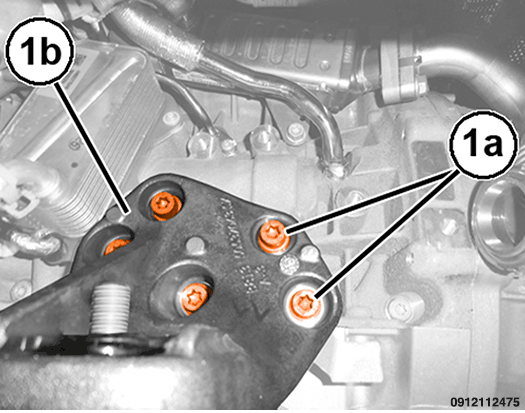

4. Remove and DISCARD  the bolts (1a). Remove the left engine mount bracket (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

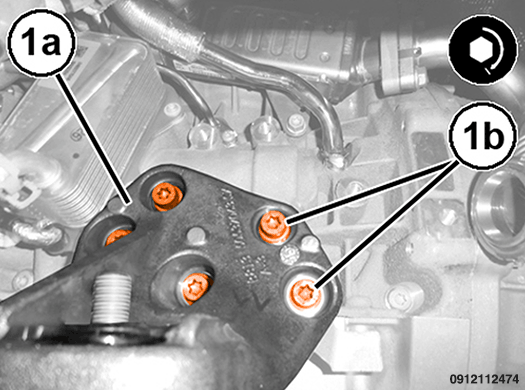

1. Install the left engine mount bracket (1a) and tighten the NEW  bolts (1b) to the proper specification Refer to TORQUE SPECIFICATIONS  .
2. Tighten the left engine mount bracket to the engine mount insulator nut (1) to the proper specification Refer to TORQUE SPECIFICATIONS  .
3. Install the catalytic convertor. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
4. Remove the support and lower the vehicle.
